HMC - Horizontal Machining Center

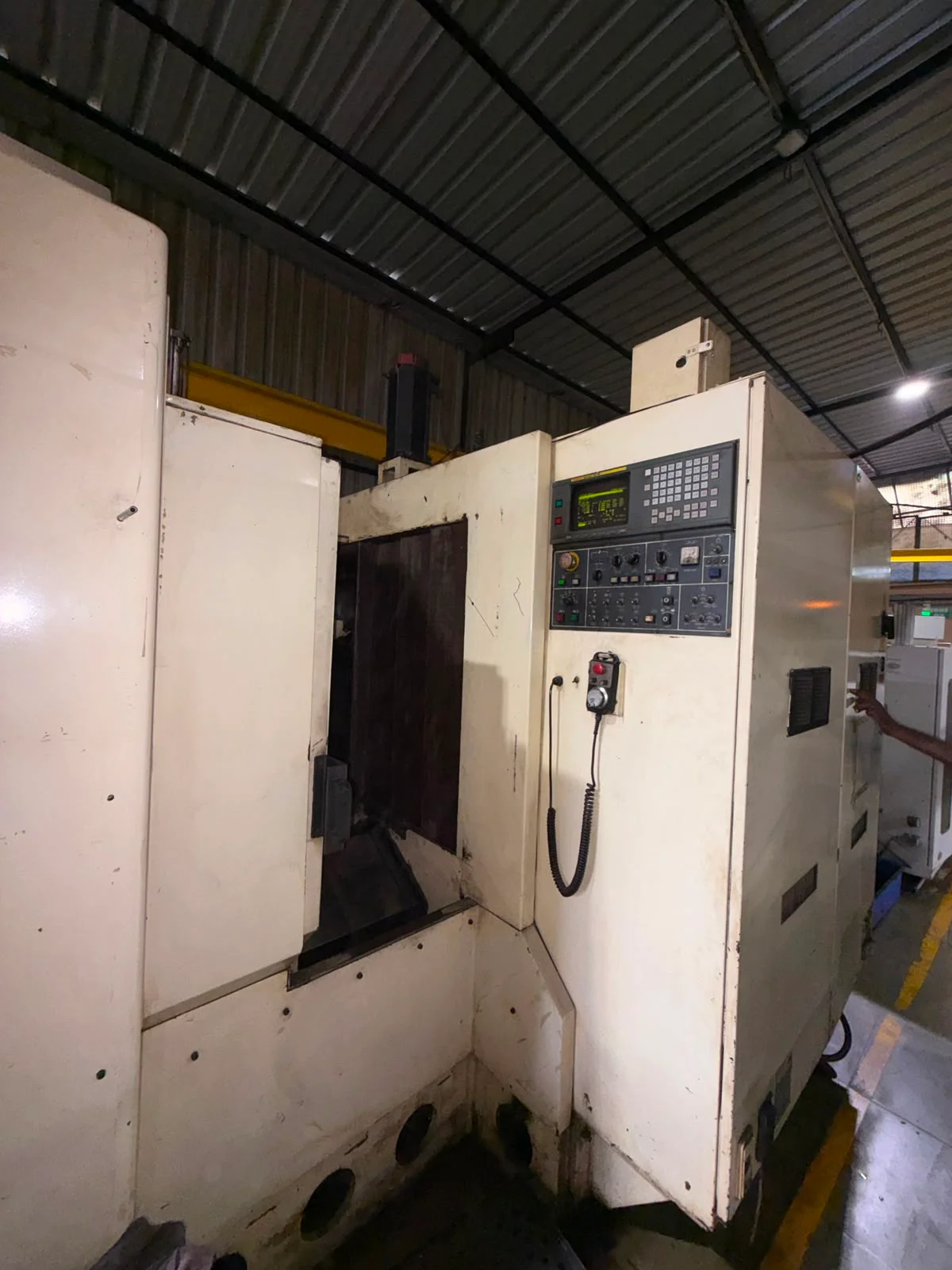

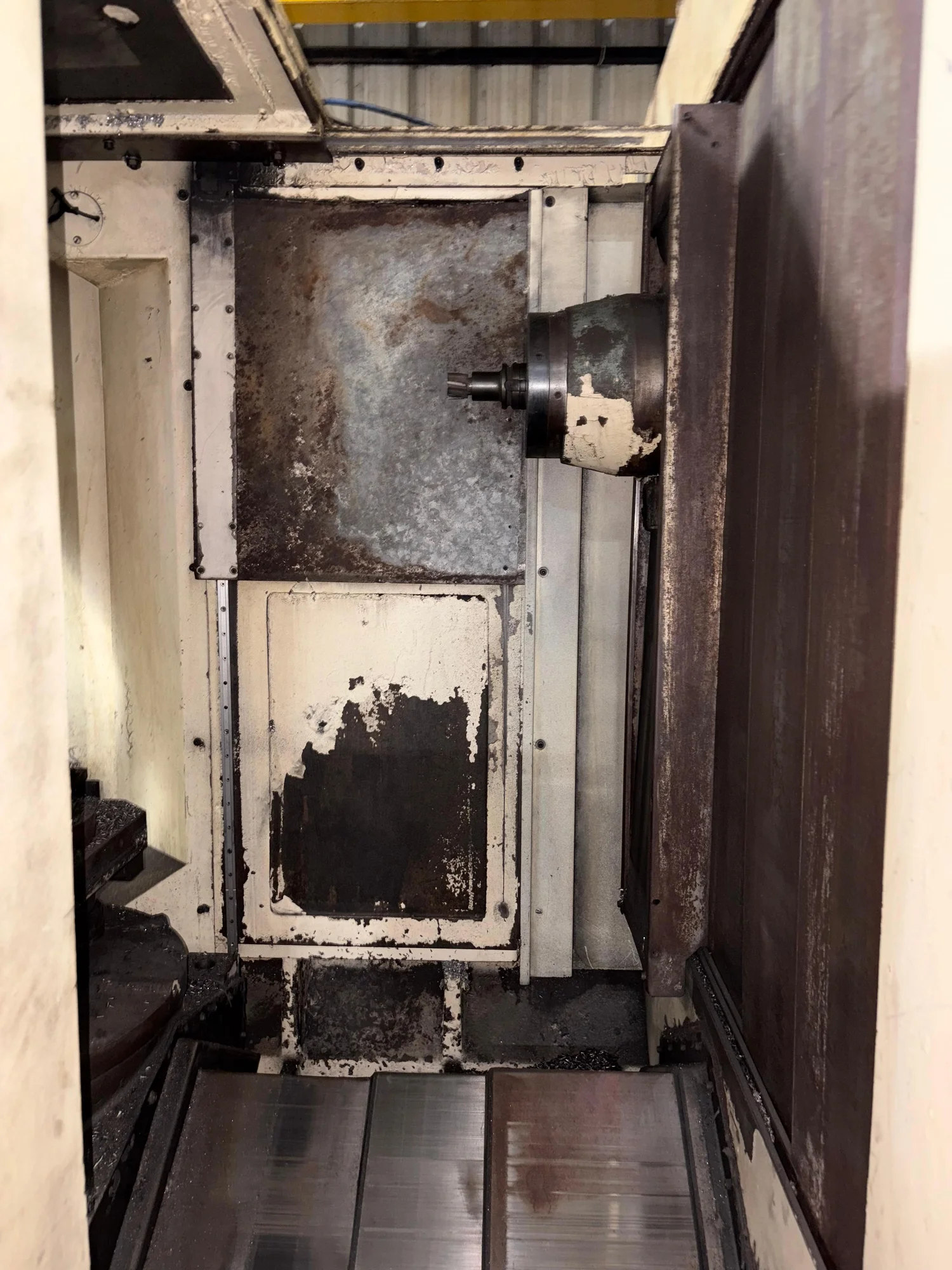

Daewoo Ace 400P

Name: Daewoo Ace 400P
Brand: Daewoo
Availability: InStock

Year: 2000

Third Party Listing

WhatsApp Us

16

Years

Family-Run Legacy

2,000+

Machines

Successfully Traded

Pan-India

Network

Buyers & Sellers

Mohali

Punjab

Headquarters

WhatsApp Send Enquiry

Download PDF

Typically responds within a few hours

Description

Ball Screw Diameter= 50 mm for all Axis.

Machine in Production.

Specifications

Machine Information

Machine State: Used
Condition: Good
Origin/Country: South Korea
Machine Source: Indian Used
Quantity Available: 1

Axis Specifications

Travel X: 600 mm
Travel Y: 560 mm
Travel Z: 560 mm
Rapid X: 40 m/min
Rapid Y: 40 m/min
Rapid Z: 40 m/min
Number of Axes: 4

Spindle Specifications

Spindle Power: 18.5 kW
Spindle Speed: 12000 rpm
Spindle Taper: BT40
Spindle Type: Integral
Spindle Nose to Pallet Centre: 50 – 610 mm

Capacity

Swing Over Pallet: 600 mm
Max Workpiece Height: 700 mm

Table & Workholding

Pallet Size X: 400 mm
Pallet Size Y: 400 mm
ATC Tool Capacity: 40
No. of Pallets: Double

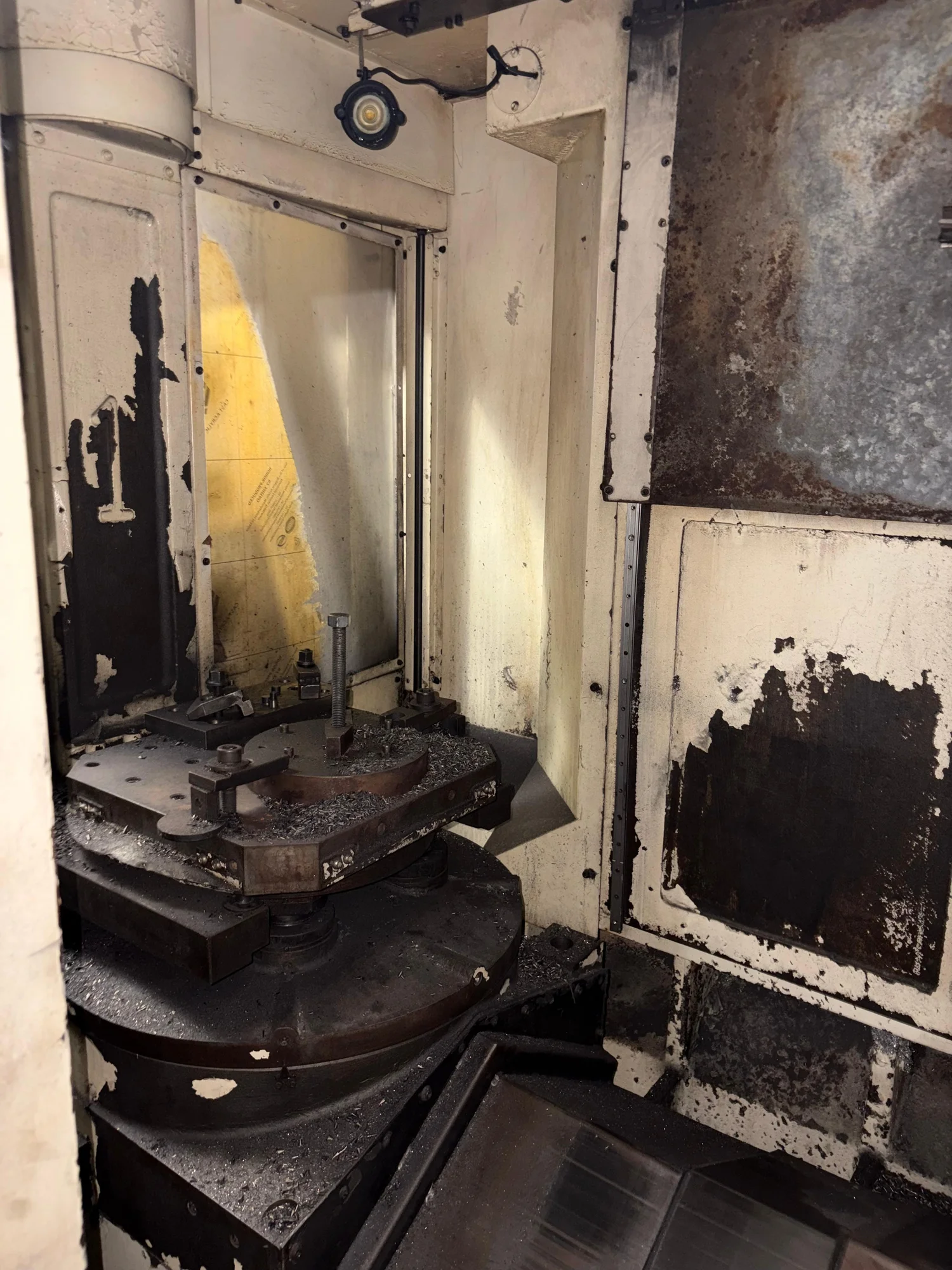

Pallet Type: Rotating
Max Table Load: 400 kg

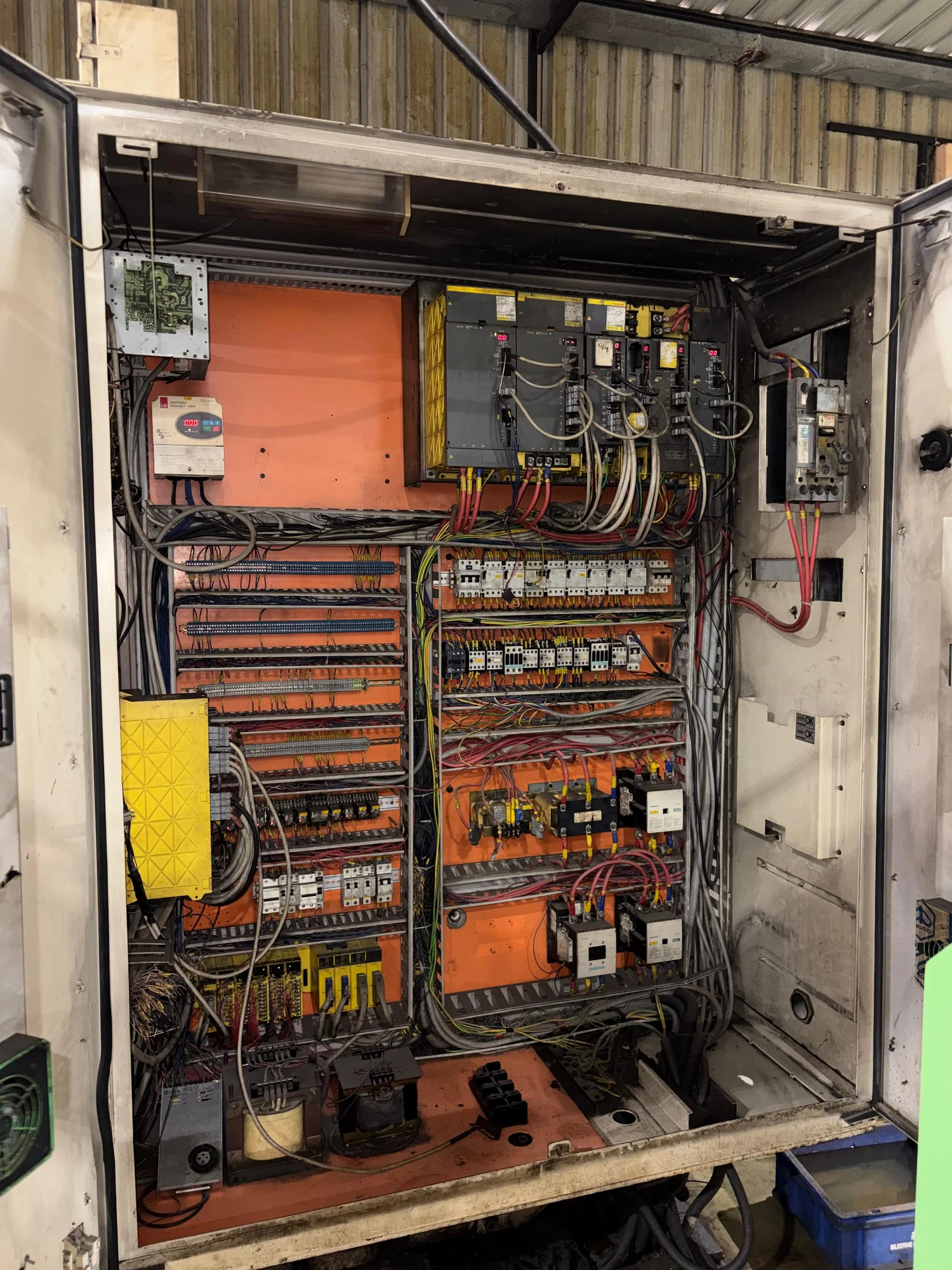

Control & Electrical

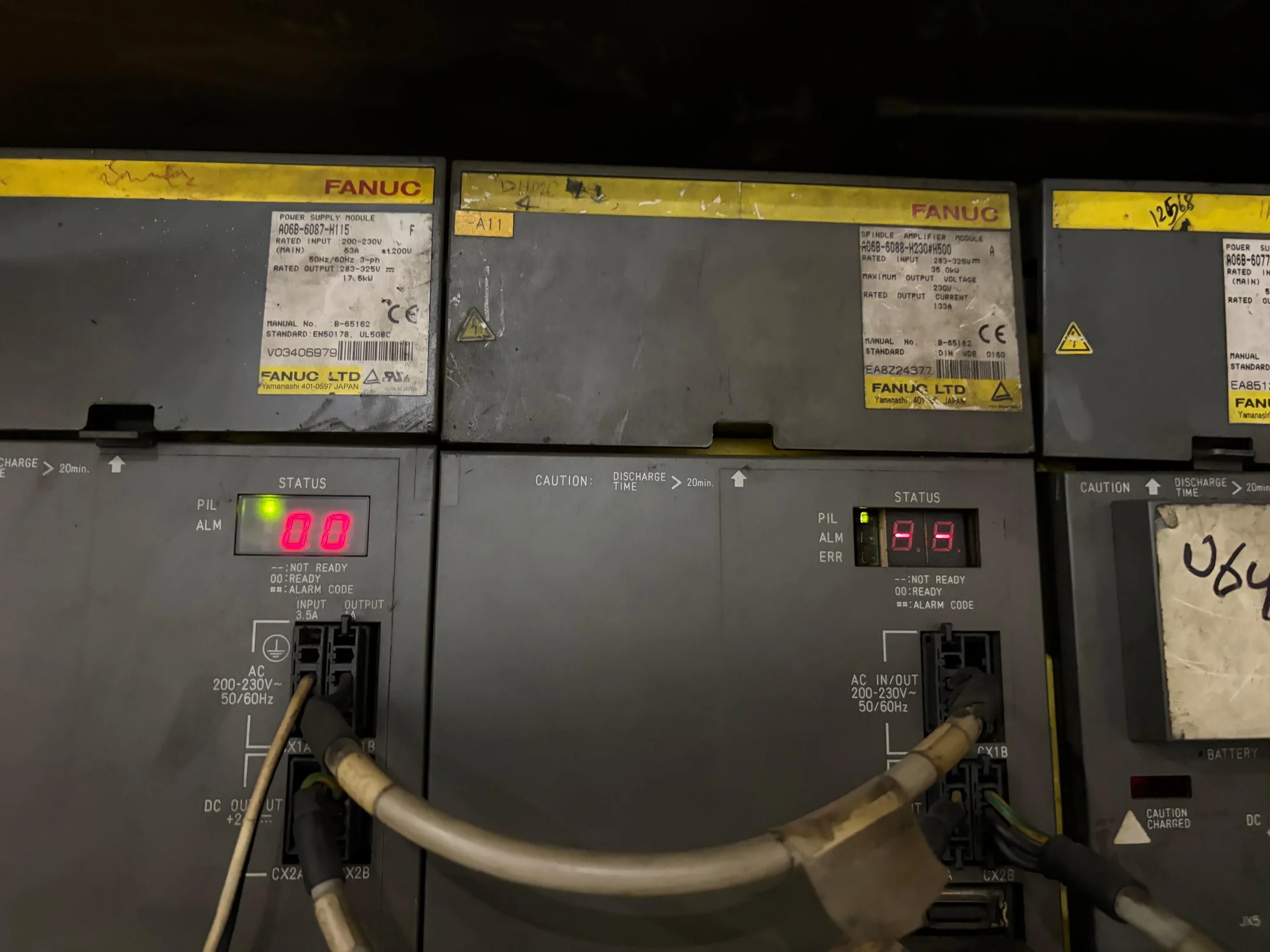

Controller Company: Fanuc

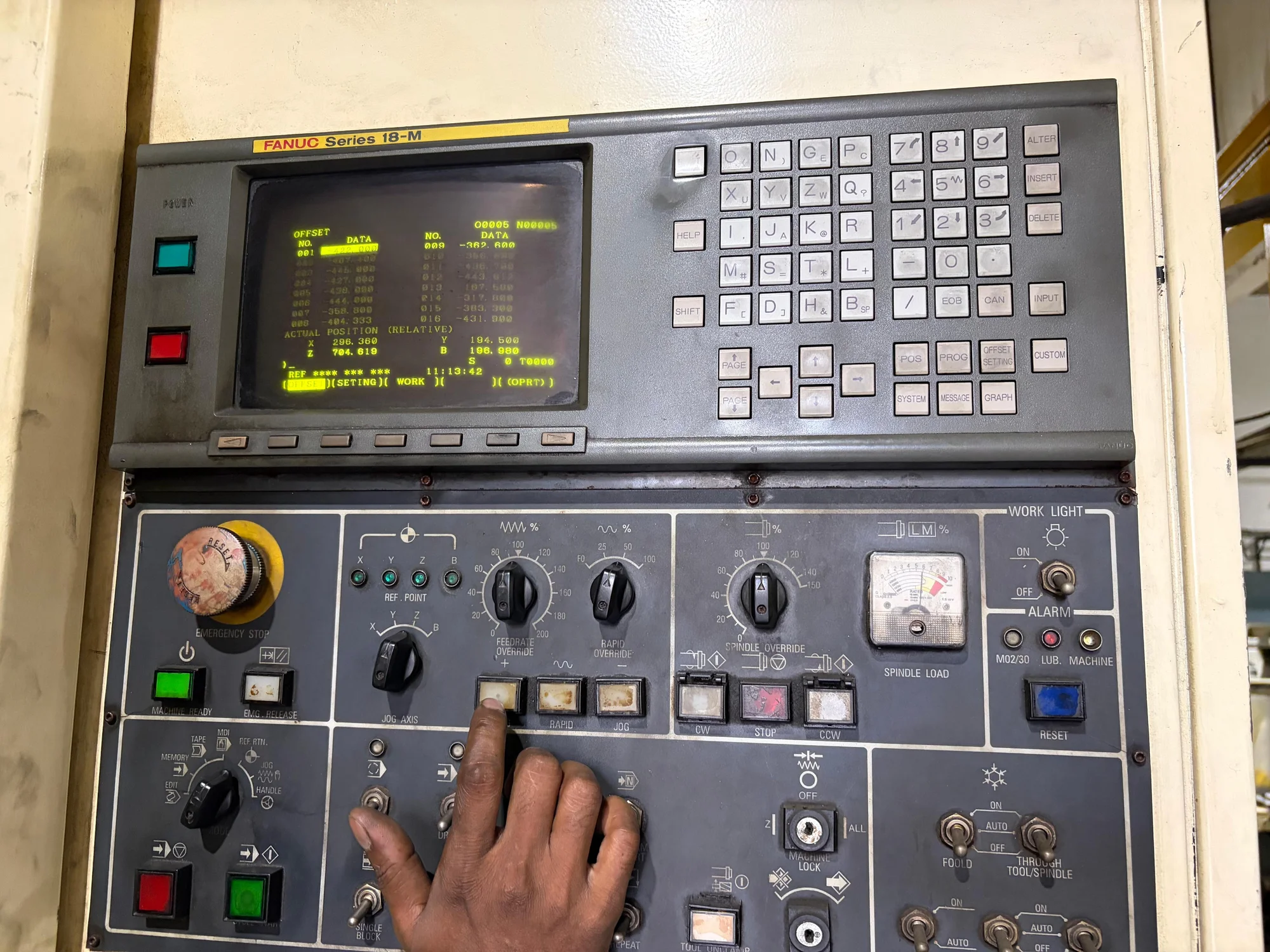

Controller Model: 18 M

Other Specifications

Guideways Type: Roller
Weight: 13500 kg
Running Condition: Working

Accessories Available

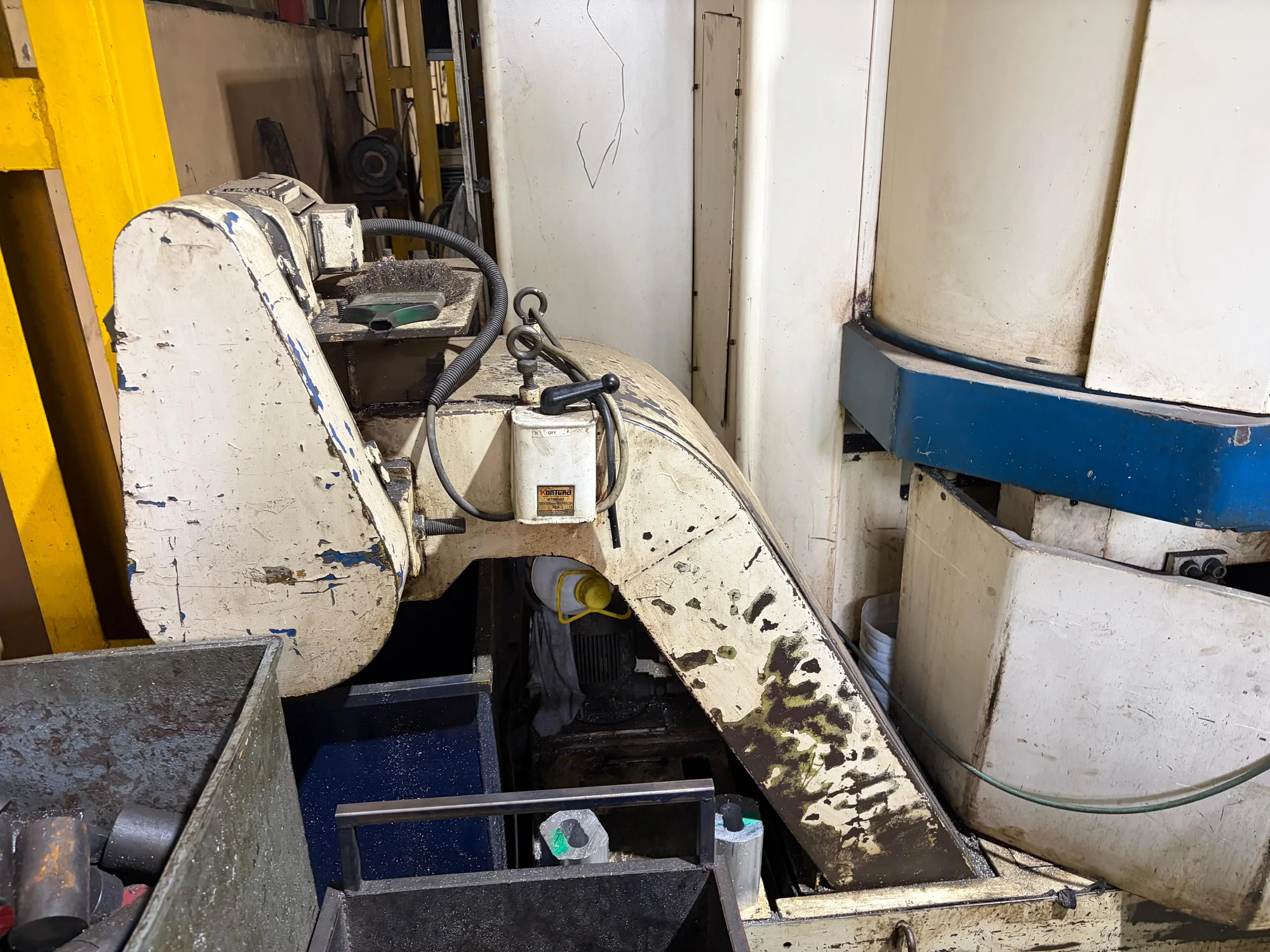

•Chip Conveyor
•Coolant Tank
•Step Down: 75 kVA
•Spindle Chiller
•Manual Available: Yes

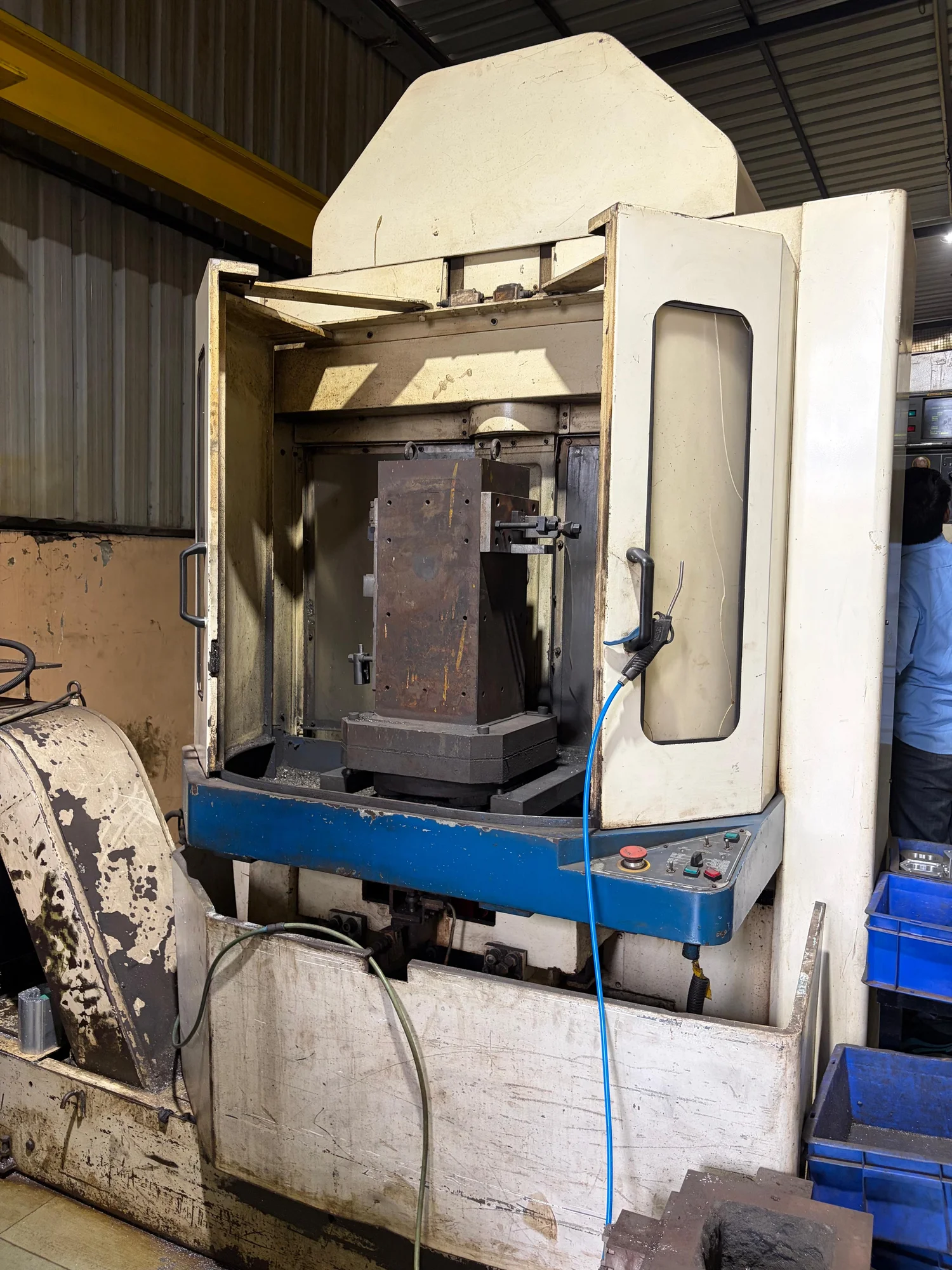

•4 Table Top Fixtures as shown in Video.
