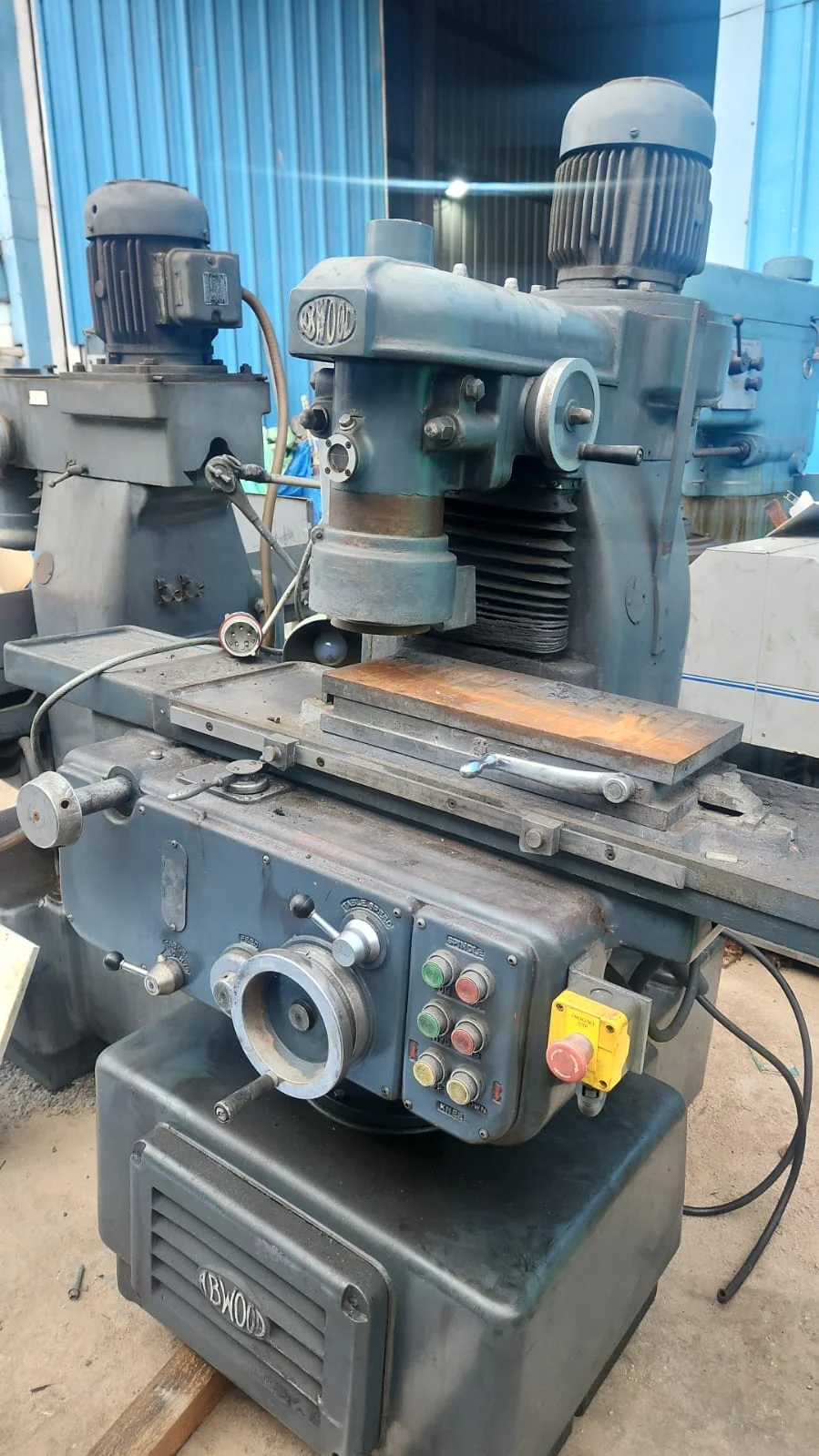

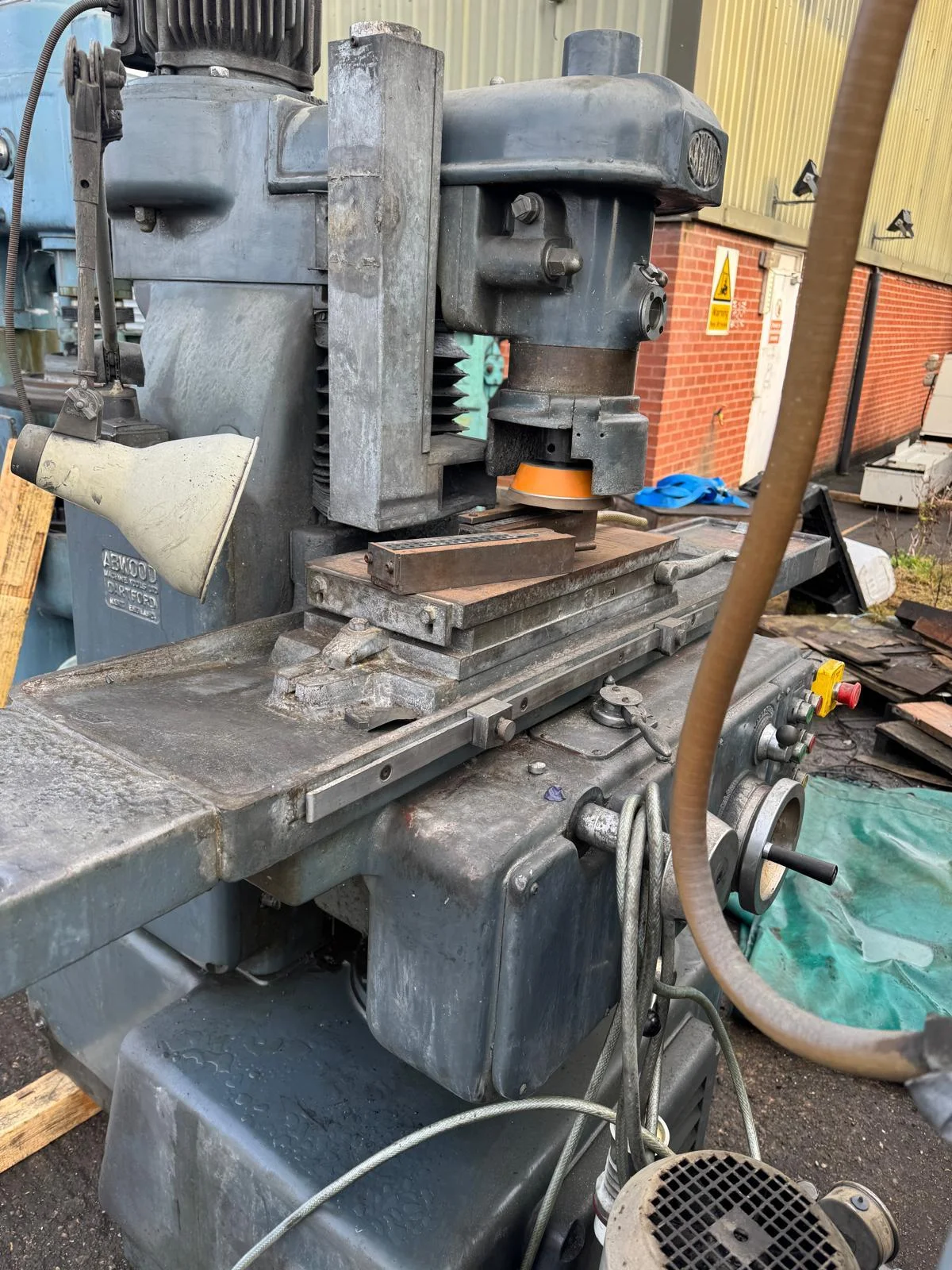

Abwood SG 4H

The primary advantage of the Abwood SG4H precision vertical spindle surface grinder over a standard horizontal wheel surface grinder is its high material removal rate (stock removal) and efficiency when flat-facing components.

Because the Abwood SG4H utilizes a vertically oriented spindle paired with a cylinder cup wheel, the face of the wheel directly contacts the entire width of the workpiece surface. By contrast, a horizontal grinder uses the narrow periphery (edge) of the wheel, making the vertical design much faster for production flat grinding.

Key Operational Advantages

Low cycle time

Coolant through the spindle directly washes the face contact area

Primary Strength: Production batching of plates, dies, spacers, and flat faces        Ultimate parallelism, slotting, and complex profile grinding

* Maximum Surface Coverage Per Pass: On a horizontal grinder, the table must reciprocate longitudinally while stepping incrementally sideways (cross-feed) to cover a broad surface. The Abwood SG4H uses a large 150–200mm diameter cup wheel

* Rigidity and Heavy Grinding Power: Backed by a robust cast-iron base and a powerful 4 kW (approx. 5.5 HP) spindle motor, the vertical column configuration minimizes wheel deflection during aggressive downfeeds. It cuts through tough tool steels, plates, and cast components effortlessly.

* Thru-Spindle Cooling: The Abwood SG4H features coolant through the spindle. Because a vertical cup wheel traps heat over a larger contact surface, sending coolant directly out of the center of the spindle forces chips and heat outward, eliminating thermal distortion and preventing the wheel from loading up.

* Floor Space Efficiency: Vertical spindle grinders inherently stack their drive mechanics vertically. The SG4H provides a substantial 500 x 200 mm work capacity while maintaining a relatively compact footprint compared to a horizontal grinder with an equivalent structural capacity.
