Used
2001
CNC Turning

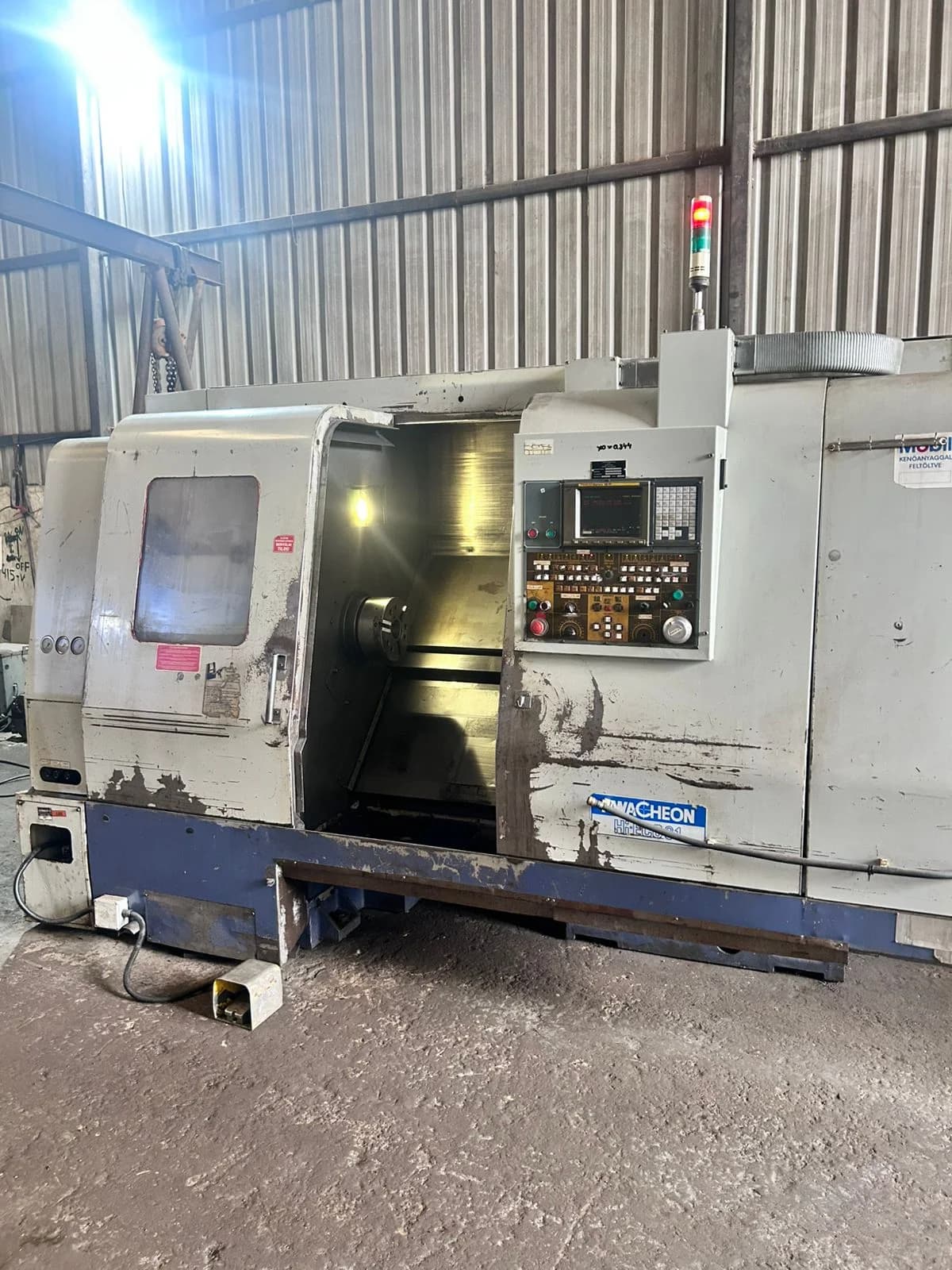

Hwacheon
Hi Eco 31
ControllerFanuc 18 T
Key Specs (mm)
Max Ø:380
Max L:600
Year: 2002
Controller
ANILAM 4200T
X Travel
339
Z Travel
1650
16
Years
Family-Run Legacy
2,000+
Machines
Successfully Traded
Pan-India
Network
Buyers & Sellers
Mohali
Punjab
Headquarters
Typically responds within a few hours
Tailstock Quill Diameter -- 75 mm (3") Tailstock Stroke -- 150 mm (5.9") Bed Width -- 330 mm (13")
Machine State
Used
Condition
Very Good
Origin/Country
Taiwan
Machine Source
Fresh Imported
Quantity Available
1
Max Turning Diameter
340 mm
Swing Over Bed
510 mm
Max Turning Length
1650 mm
Distance Between Centers
2000 mm
Bed Width
319 mm
Tail Stock
Yes
Tail Stock Quill Diameter
75 mm
Tail Stock Stroke
150 mm
Spindle Power
15 kW
Spindle Speed
2000 rpm
Spindle Nose
MT 10
No. of Jaws
3
Spindle Type
Gear Head
Turret Stations
4
Bore Type
Through Bore
Bore Diameter
102 mm
Travel X
339 mm
Travel Z
1650 mm
Rapid X
2 m/min
Rapid Z
6.6 m/min
Controller Company
ANILAM
Controller Model
4200T
Guideways Type
Box
Bed Type
Flat
Weight
3300 kg
