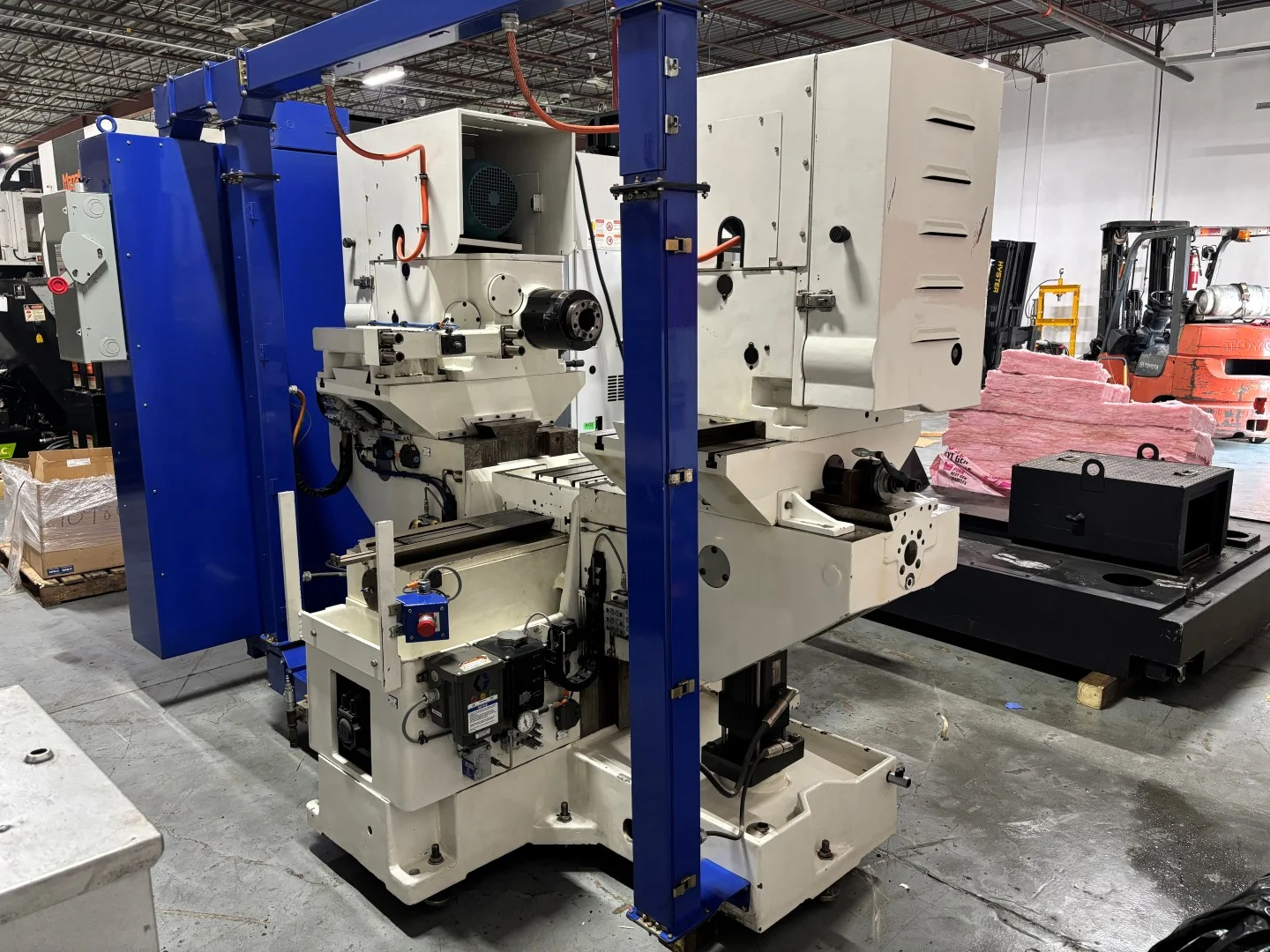

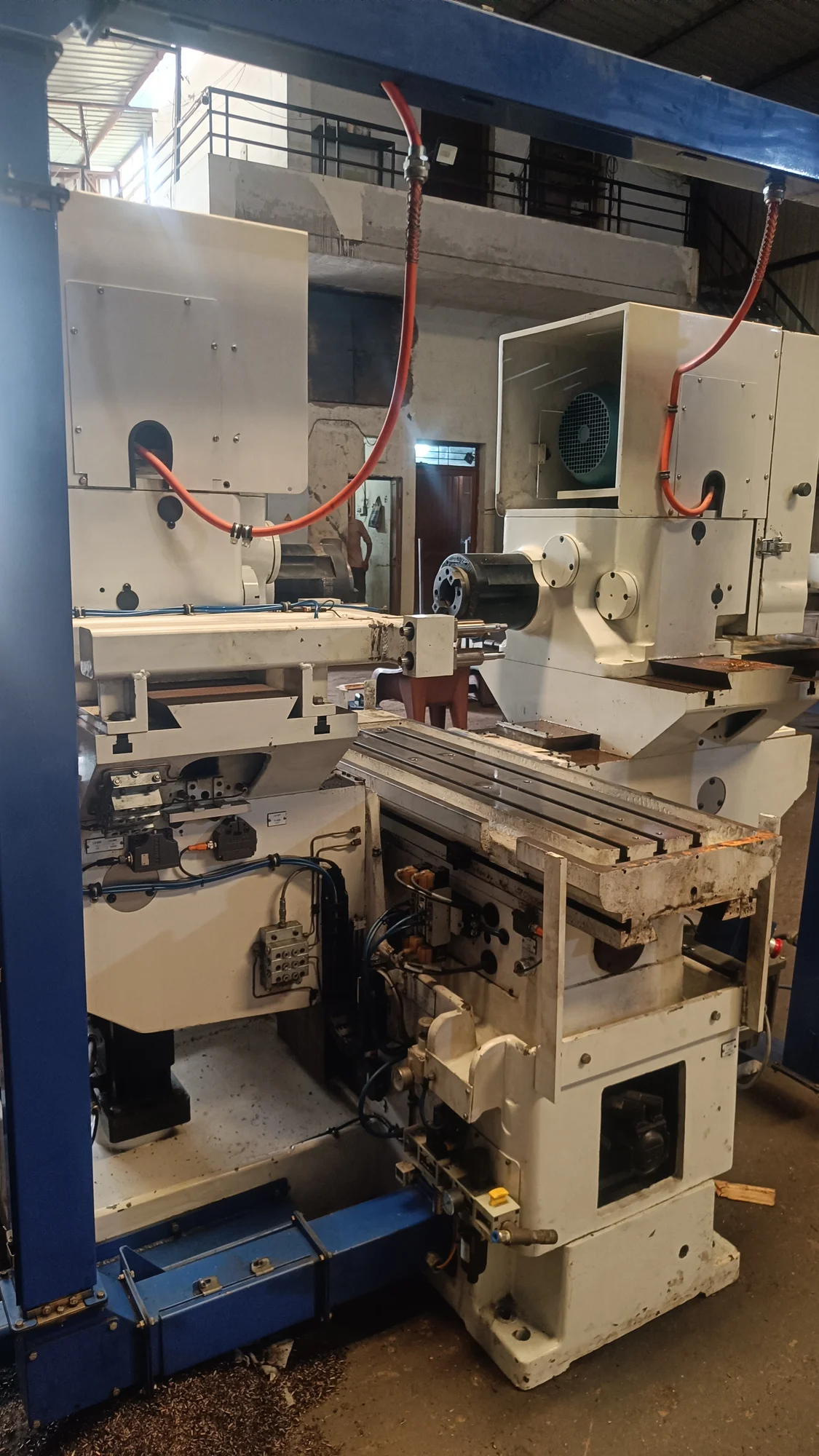

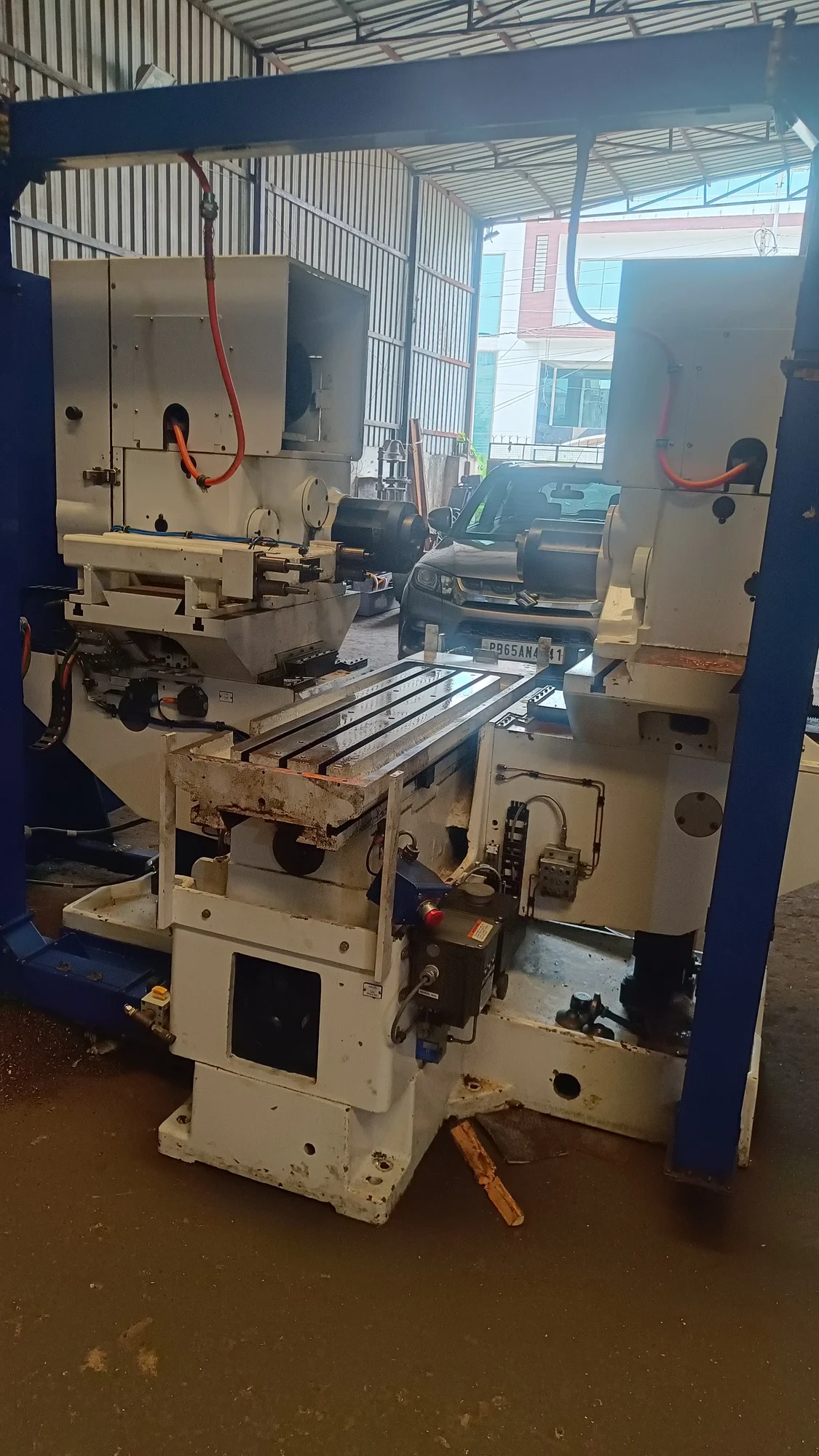

Milling Machine

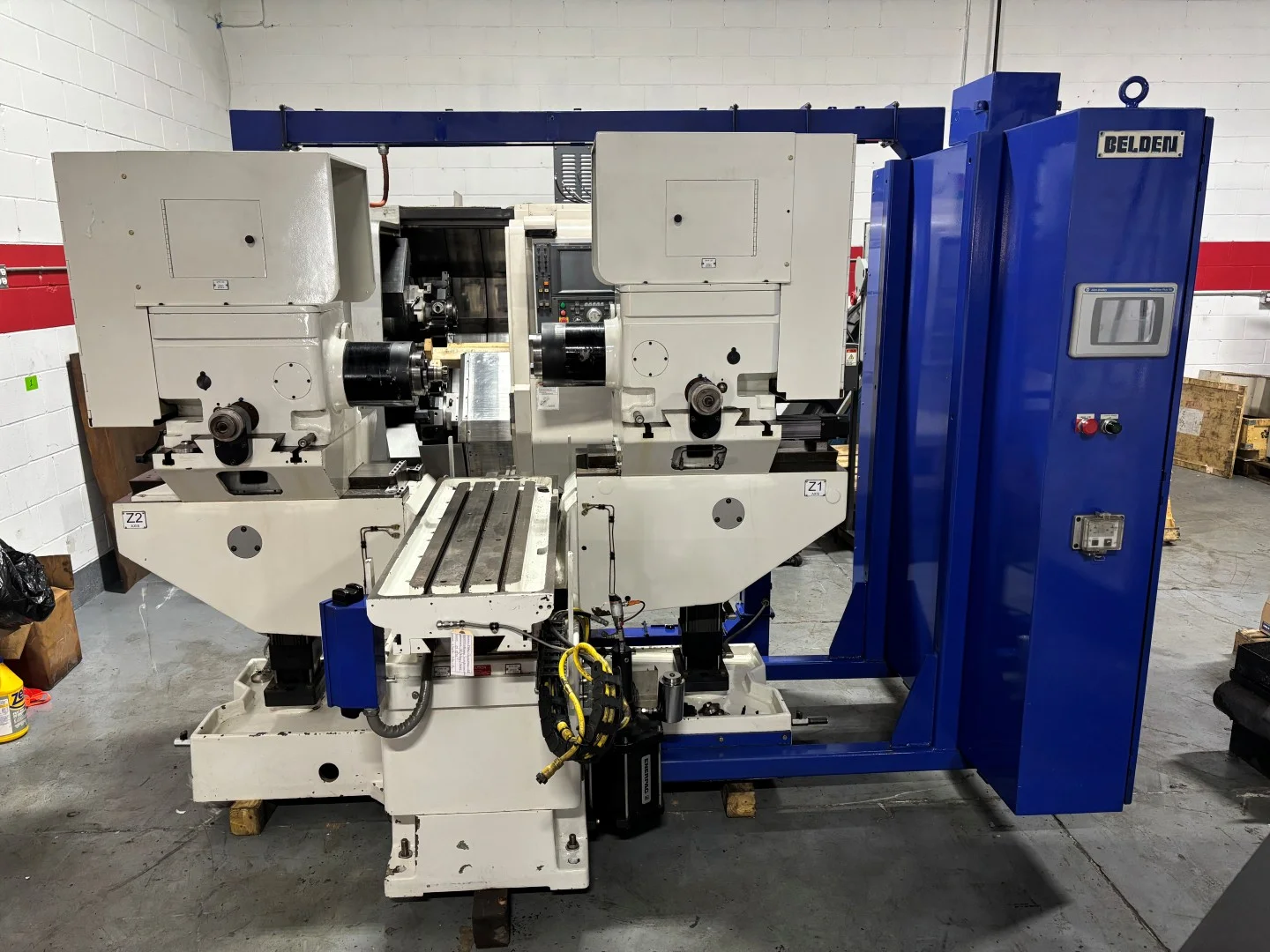

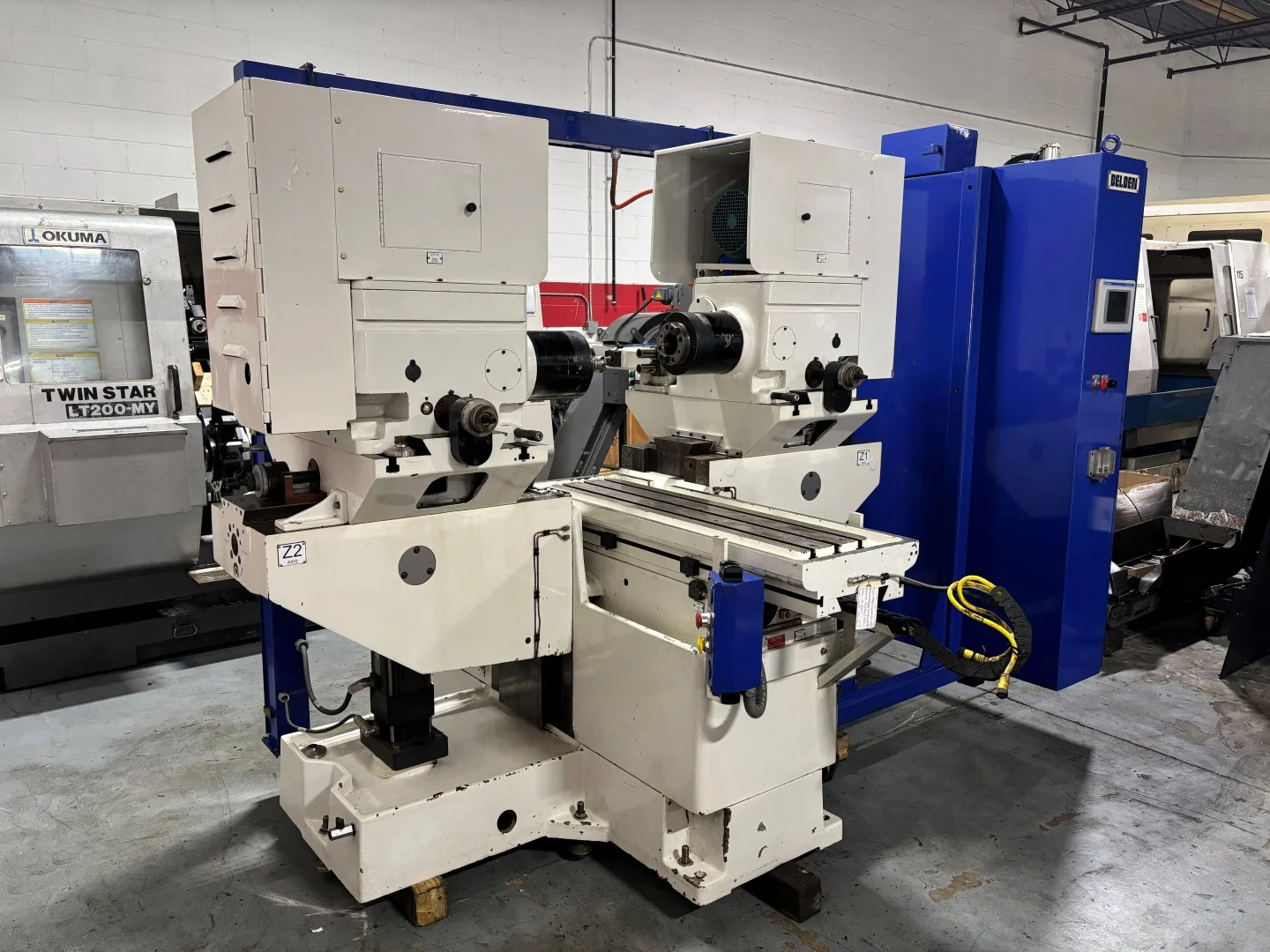

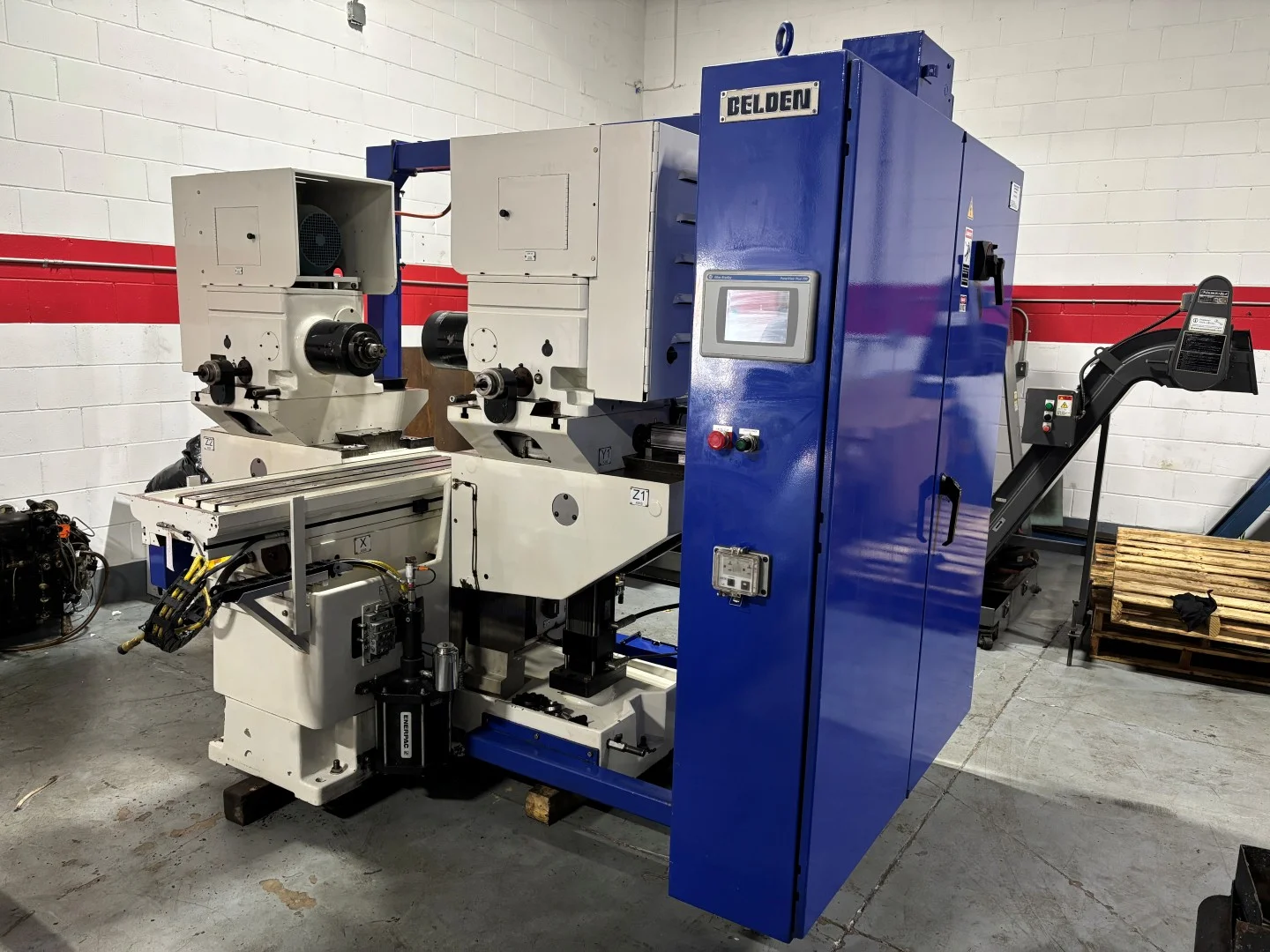

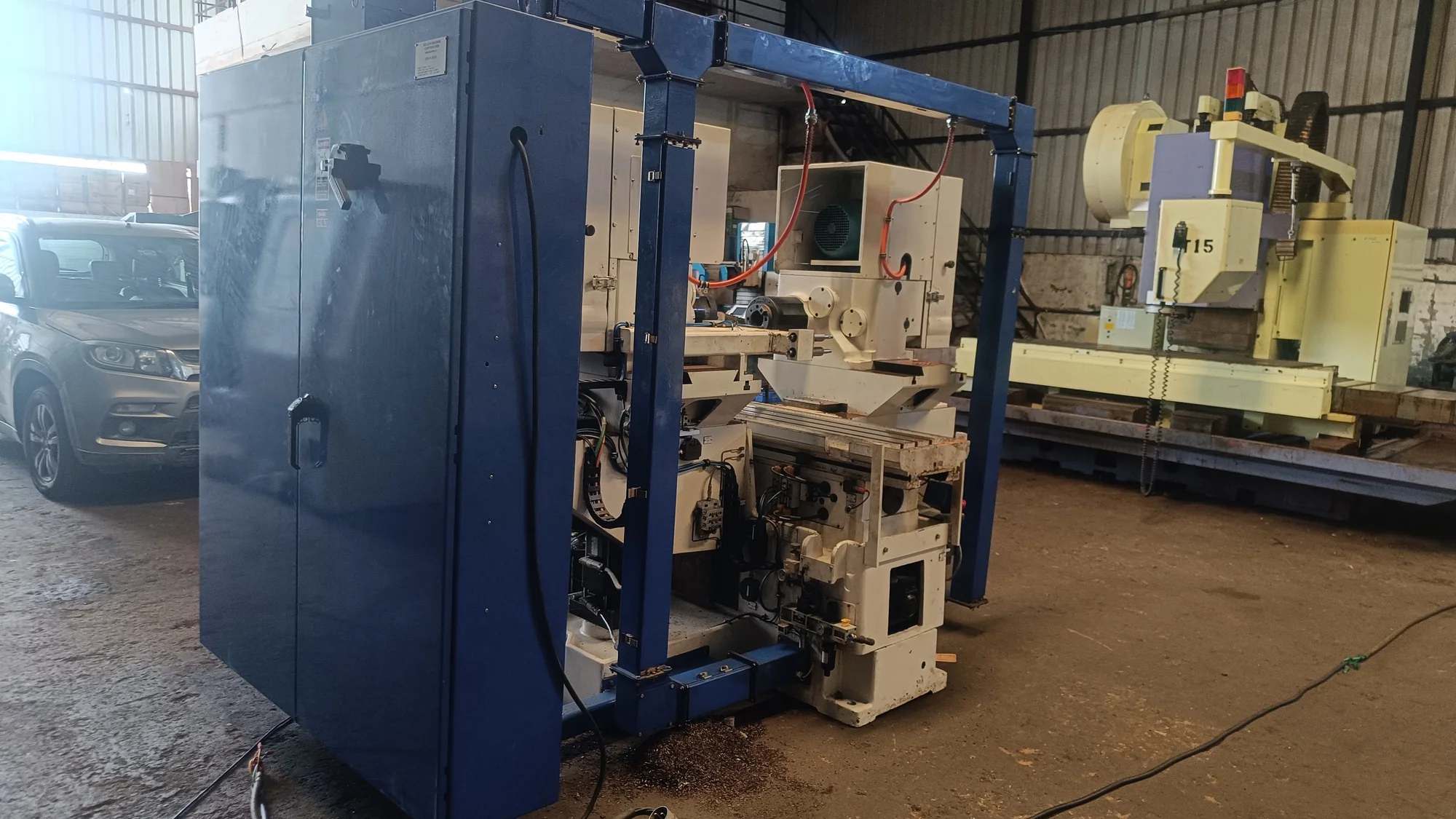

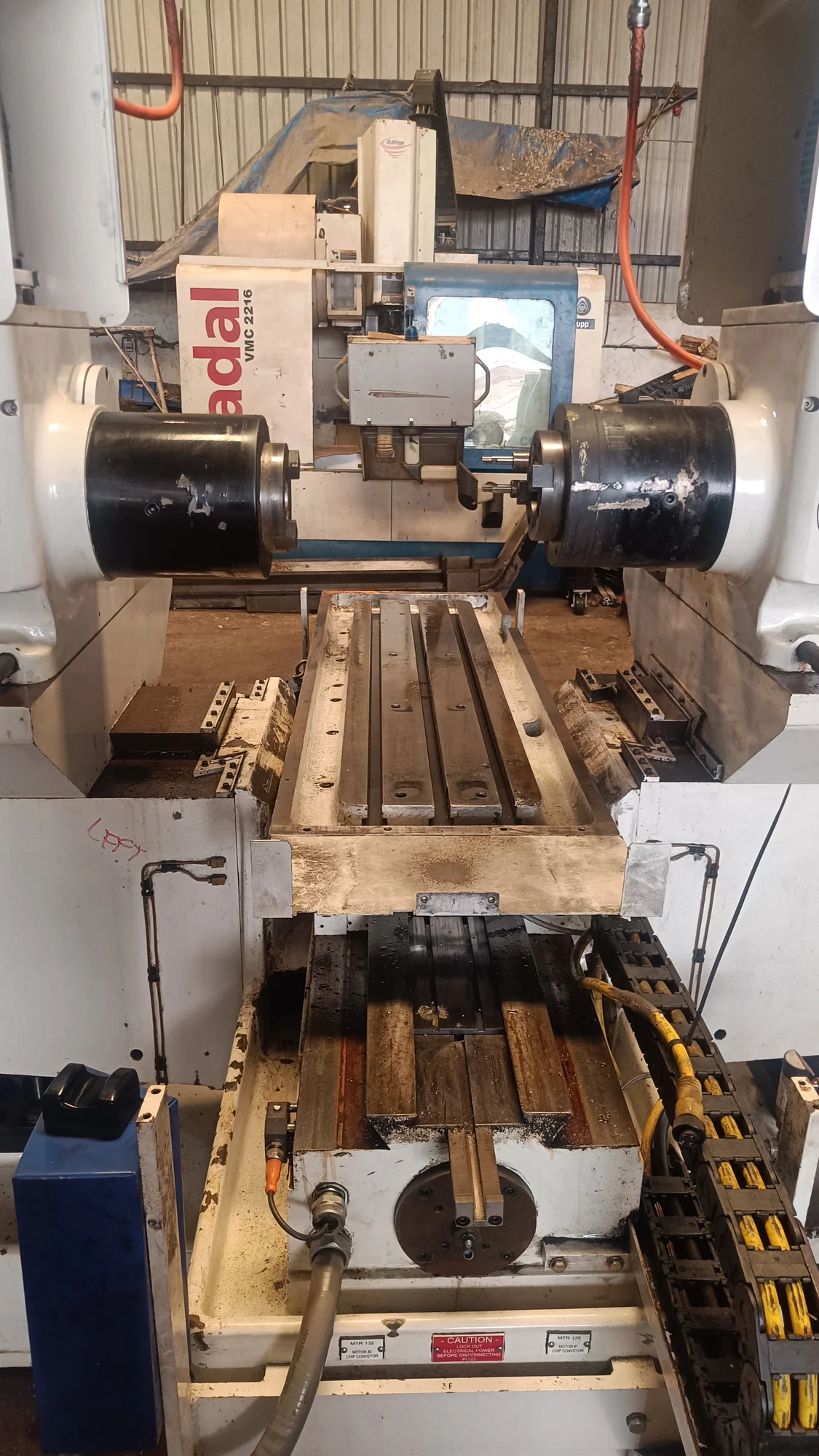

Nichols Big Twin Belden

Name: Nichols Big Twin Belden
Brand: Nichols
Availability: InStock

Year: 2013

Rare Find

WhatsApp Us

16

Years

Family-Run Legacy

2,000+

Machines

Successfully Traded

Pan-India

Network

Buyers & Sellers

Mohali

Punjab

Headquarters

WhatsApp Send Enquiry

Download PDF

Typically responds within a few hours

Description

Motors of spindles are 10 HP each

Distance between spindles can be 450 mm after modification

Specifications

Machine Information

Machine State: Used
Condition: Excellent
Origin/Country: USA
Machine Source: Fresh Imported from USA
Quantity Available: 1

Axis Specifications

Saddle Traverse: 75 mm
Saddle Traverse Rate: 0 – 1524 mm/min
Vertical Travel of Knee: 117.5 mm
Knee Traverse Rate: 0 – 1524 mm/min
Knee Travel: 300 mm
Table X-Axis Drive (Workpiece Travel): Motorised
X-Axis Drive (Left Spindle Position Adjustment): Manual
Y-Axis Drive (Left): Manual
Z-Axis Drive (Left): Motorised
X-Axis Drive (Right Spindle Position Adjustment): Manual
Y-Axis Drive (Right): Motorised
Z-Axis Drive (Right): Motorised

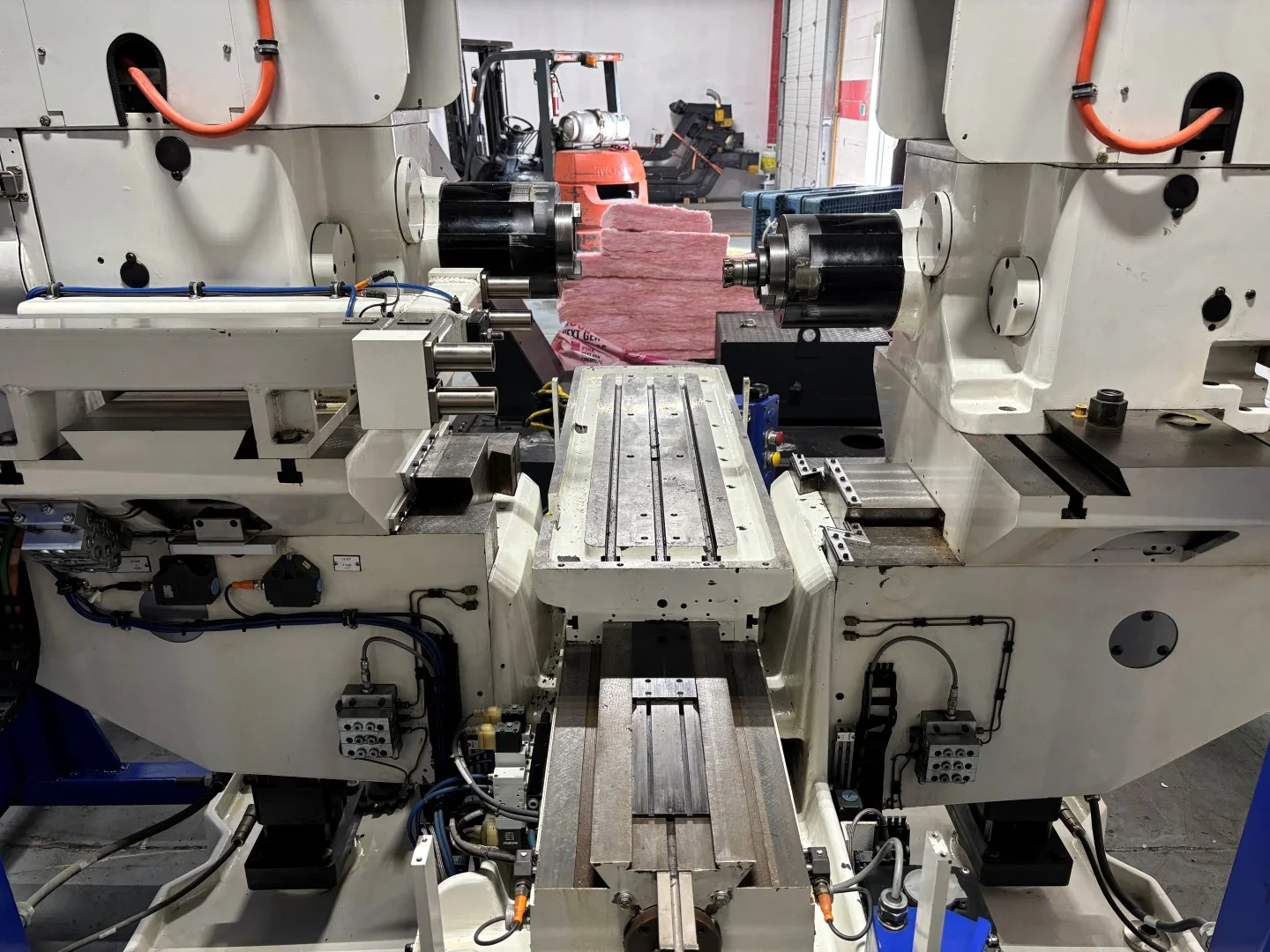

Spindle Specifications

Spindle Nose Separation: 100 – 300 mm
Spindle Taper: NST 50
Spindle Bore Diameter: 25 mm
Spindle Speed: 0 – 1740 rpm
Spindle Bore: 27 mm
Spindle Taper: NT50
Spindle Speed: 0 – 1740 rpm

Capacity

Working Area: 1067 × 250 mm
Height Between Spindle & Table: 114 – 420 mm
Max Cutting Stroke: 940 mm
Max Longitudinal Offset of Heads: 300 mm

Table & Workholding

Table Size: 1220 × 406 mm

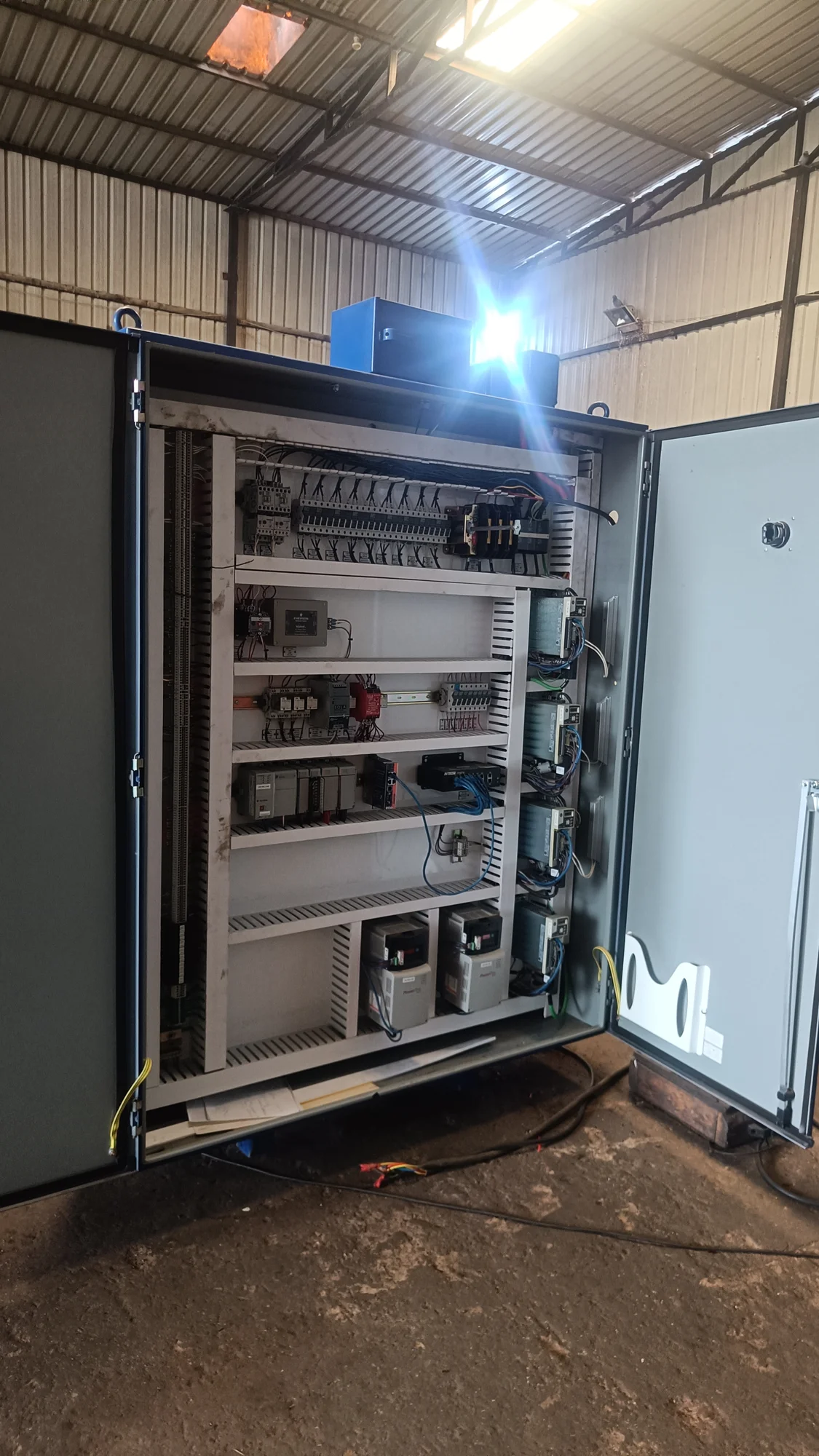

Control & Electrical

PLC Available: Yes

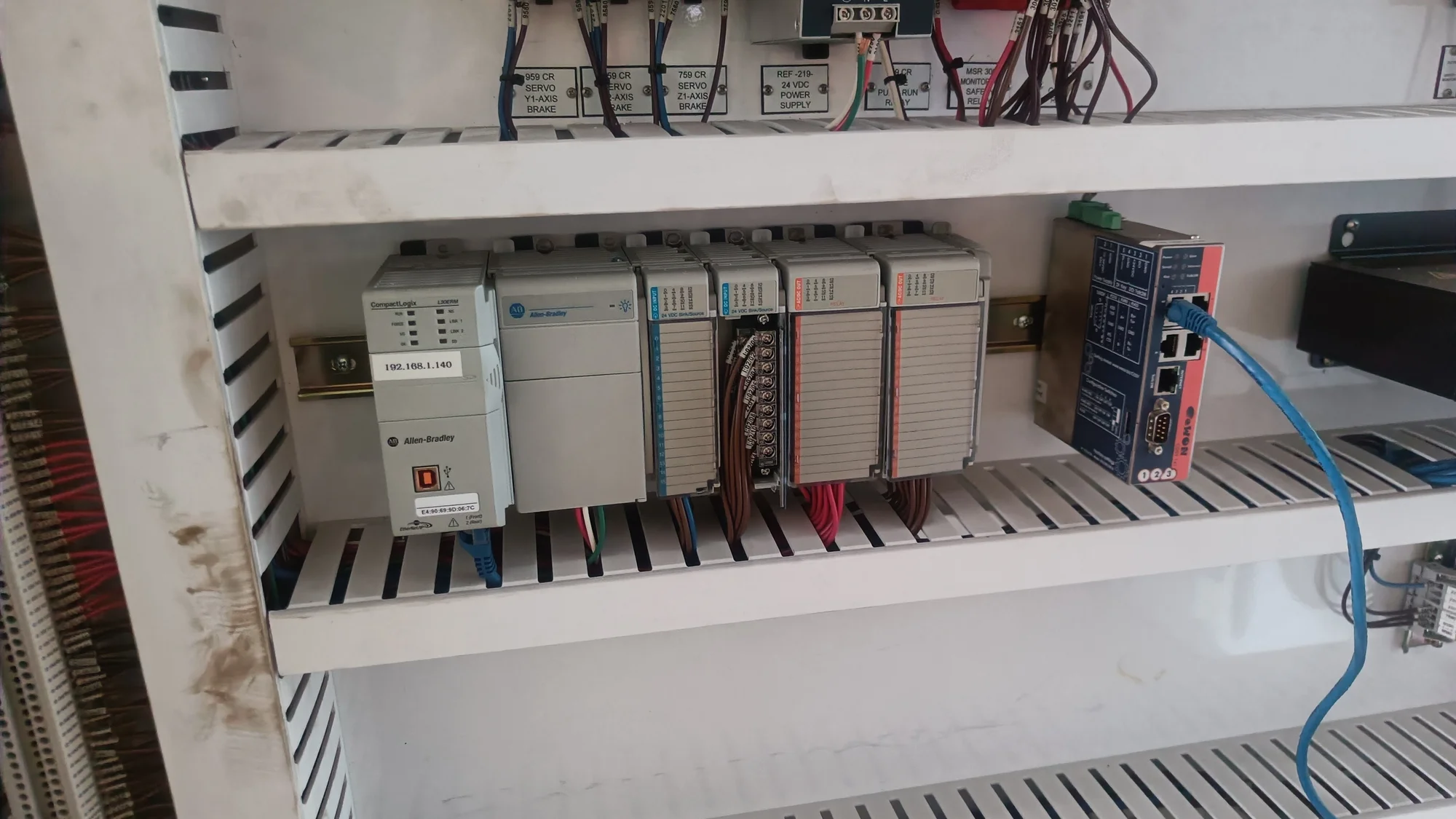

PLC Make / Model: Allen Bradley Compact Logix
HMI Available: Yes

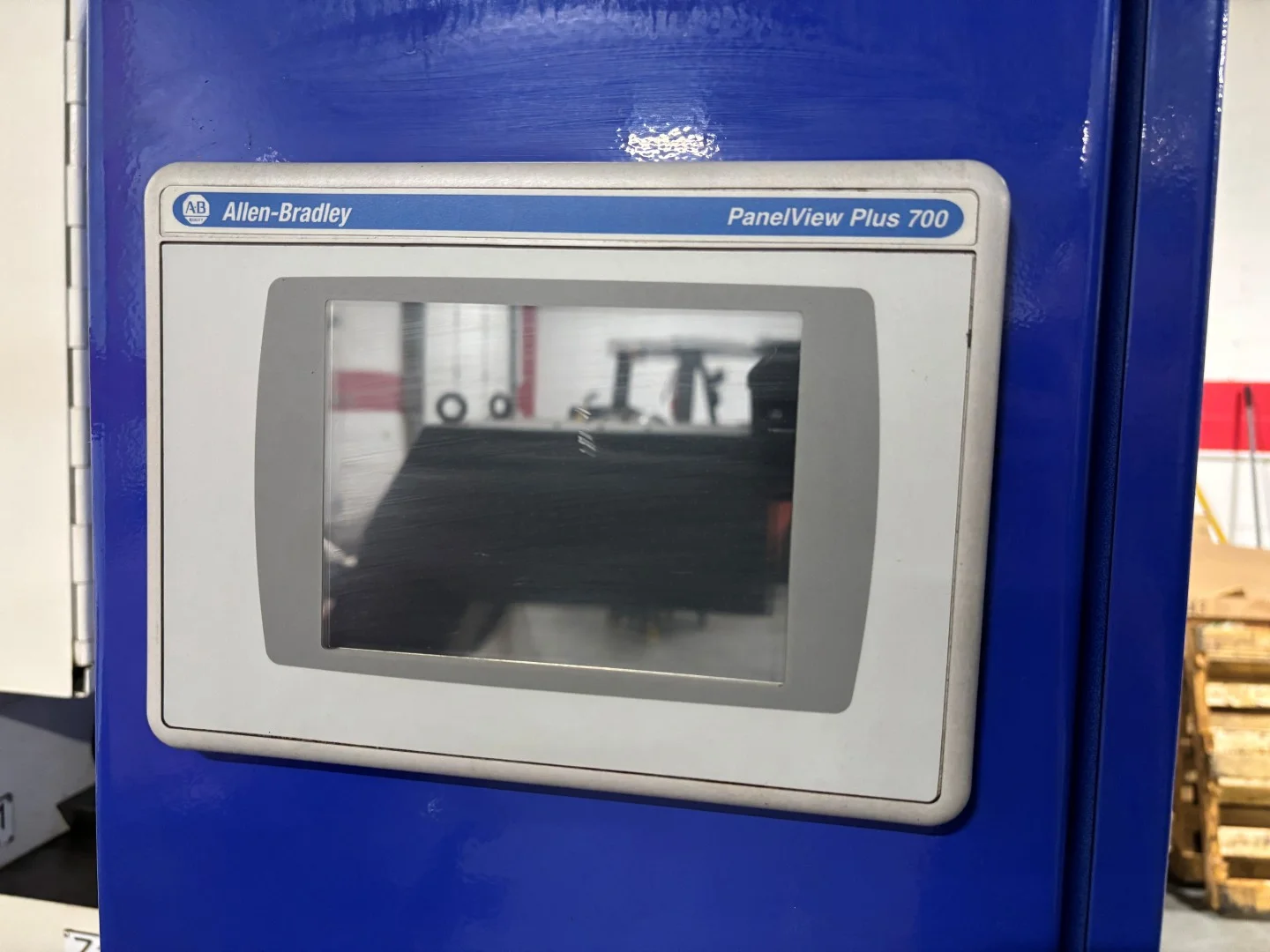

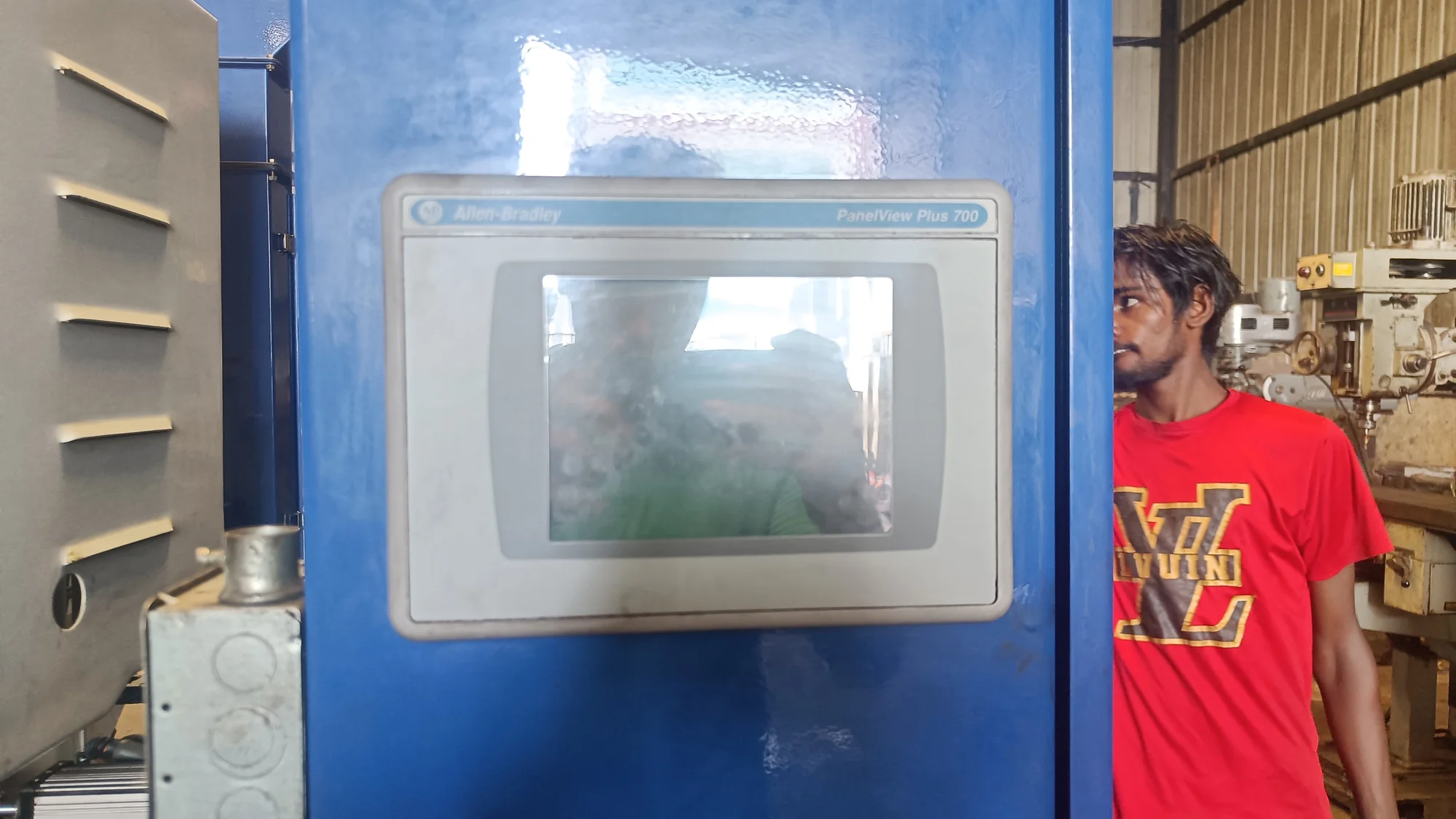

HMI Make / Model: Panel View Plus 7000

Other Specifications

Mill Type: Duplex
Running Condition: Working

Other Milling Machine machines

Used

1987

Milling Machine

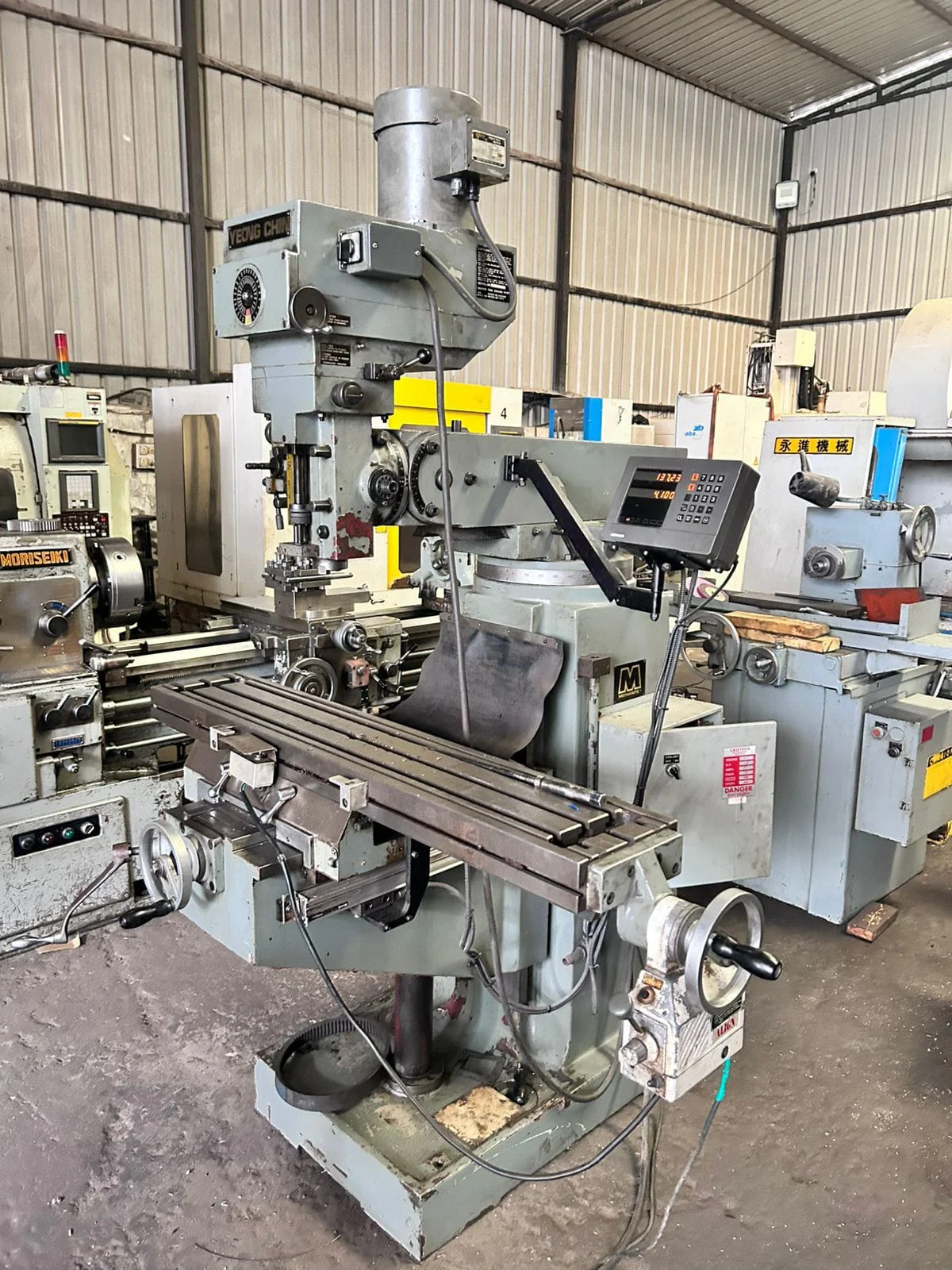

Supermax Yeong Chin

M1TR

Travel (mm)

X650

Y400

View Details WhatsApp

Used

1999

Milling Machine

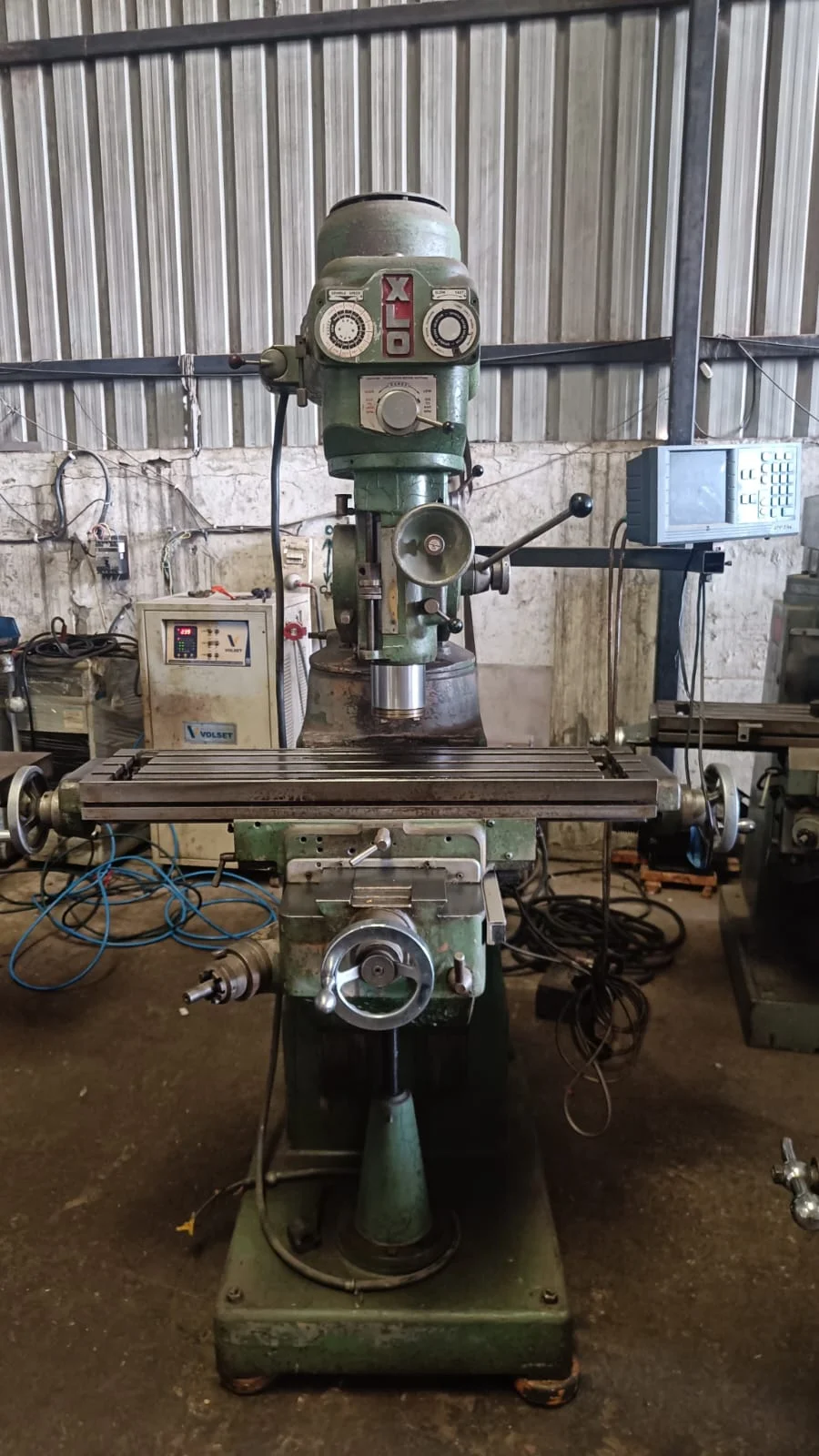

Ex-Cello-O
