Year: 2004
Controller
Mori Seiki MSX-501
X
800
Y
510
Z
510
16
Years
Family-Run Legacy
2,500+
Machines
Successfully Traded
Pan-India
Network
Buyers & Sellers
Mohali
Punjab
Headquarters
Typically responds within a few hours

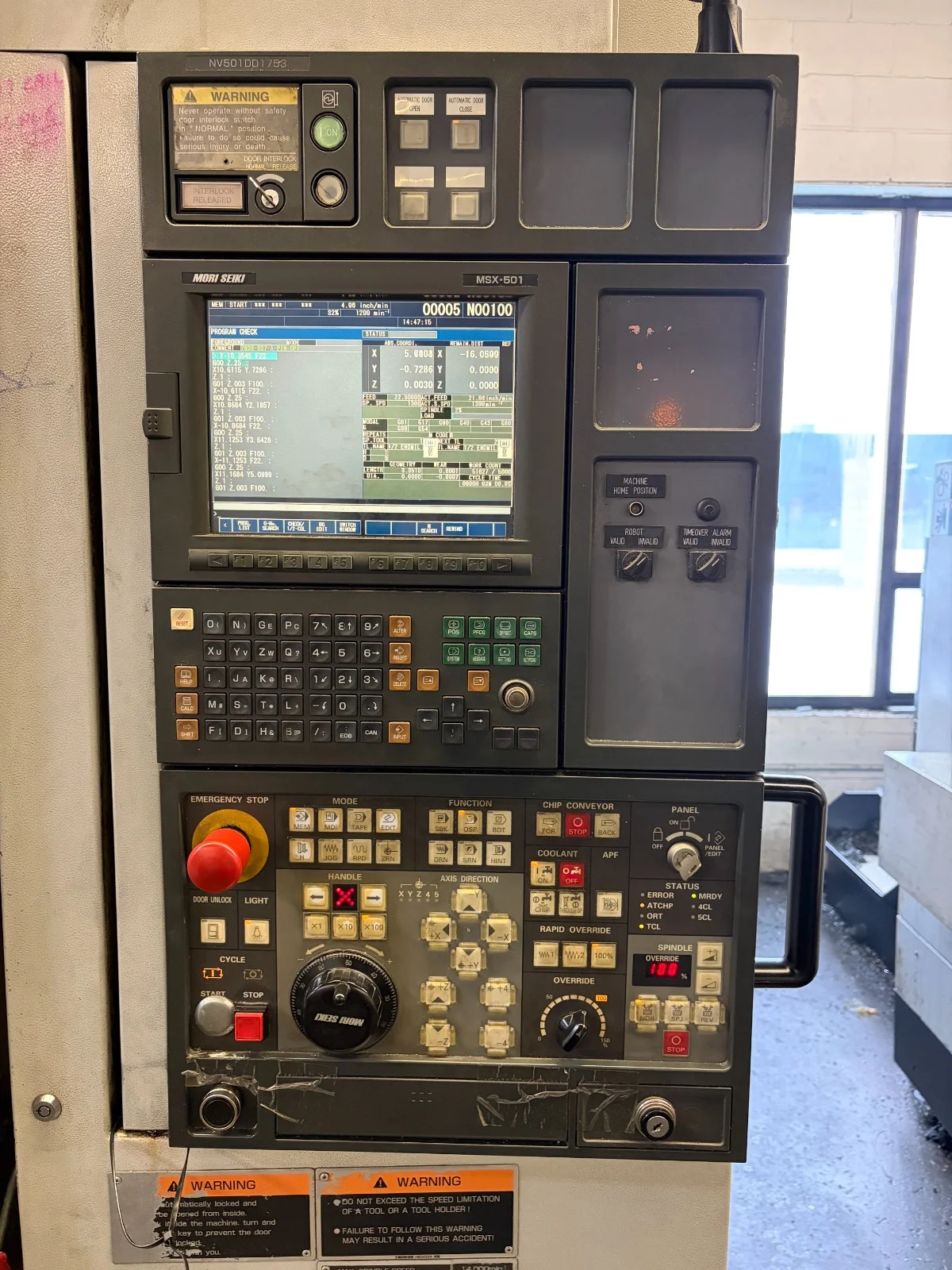

Mori Seiki MSX-501 controller is Equivalent Fanuc 18i MB Controller
Only Aluminium workpieces are manufactured.
| Machine Information | |
|---|---|
| Machine State | Used |
| Condition | Excellent |
| Origin/Country | Canada |
| Machine Source | Fresh Imported |
| Quantity Available | 1 |
| Axis Specifications | |
|---|---|
| Travel X | 800 mm |
| Travel Y | 510 mm |
| Travel Z | 510 mm |
| Rapid X | 42 m/min |
| Rapid Y | 42 m/min |
| Rapid Z | 36 m/min |
| Number of Axes | 3 |
| Spindle Specifications | |
|---|---|
| Spindle Power | 22.4 kW |
| Spindle Speed | 12000 rpm |
| Spindle Taper | CAT40 |
| Spindle Type | Integral |
| Table & Workholding | |
|---|---|
| Table Size | 1100 × 500 mm |
| ATC Tool Capacity | 30 |
| No. of Pallets | Single |
| Max Table Load | 800 kg |
| Control & Electrical | |
|---|---|
| Controller Company | Mori Seiki |
| Controller Model | MSX-501 |
| Other Specifications | |
|---|---|
| Guideways Type | LM |
| Column Type | Single Column |
| Weight | 6500 kg |
| Running Condition | Working |
