In TransitUsed
1999
VMC - Vertical Machining Center
Takumi
V22A
ControllerMitsubishi
Travel (mm)
X2190
Y1067
Z750
Year: 2006
Controller
Fanuc 0i MC
X Travel
1900
Y Travel
900
Z Travel
800
16
Years
Family-Run Legacy
2,000+
Machines
Successfully Traded
Pan-India
Network
Buyers & Sellers
Mohali
Punjab
Headquarters
Typically responds within a few hours

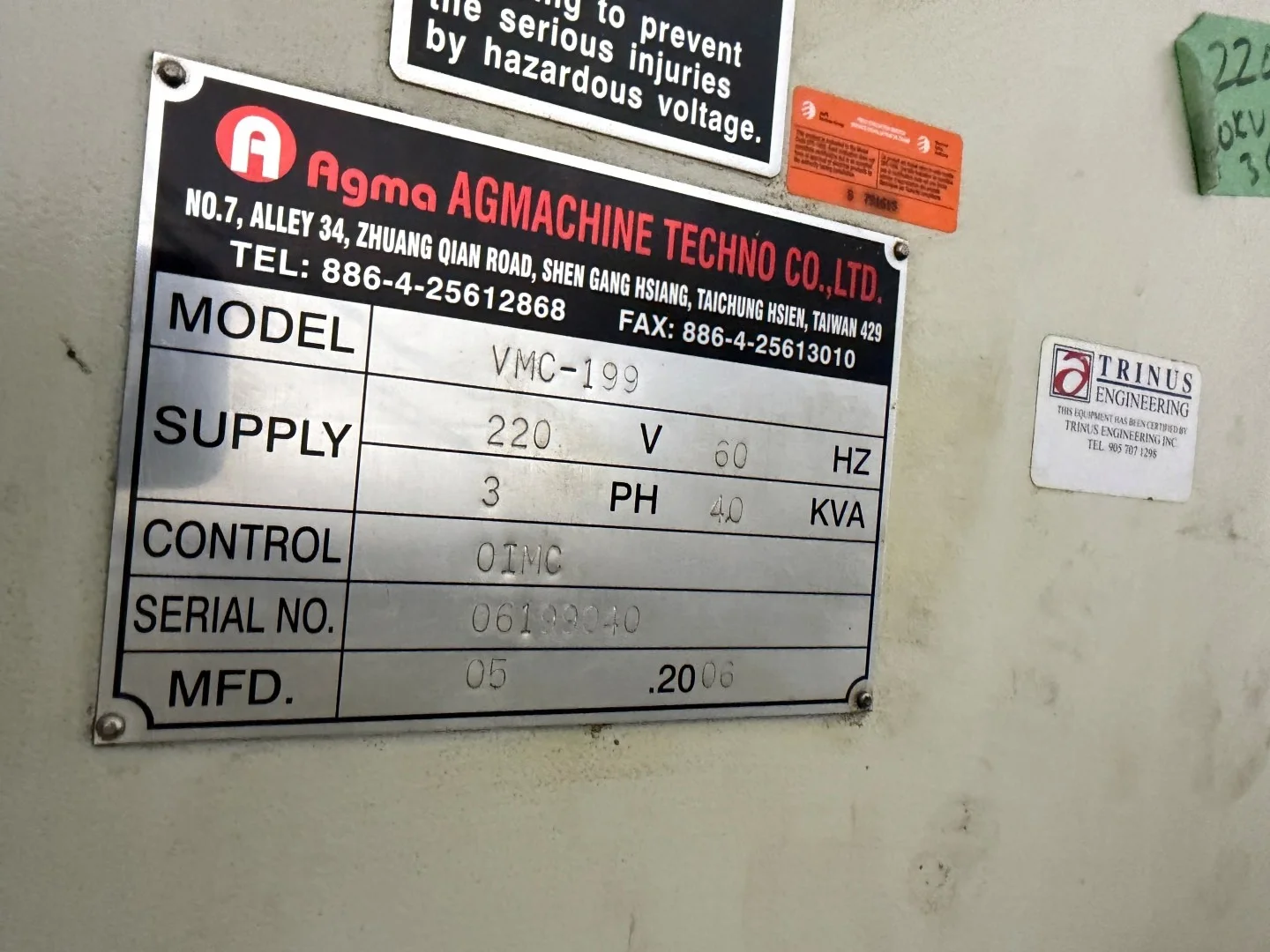

*Serial Number* -- 06199040 *T-Slot Size* -- 18 mm x 6 x 150 mm *Max Tool Diameter/LENGTH/WT – 250/300MM/15 KG) *Machine Height* -- 3600 mm (142") *Floor Space* -- 5100 x 3900 mm (201" x 154") • Full Enclosure, Coolant System,Chip Management System
Machine State
Used
Condition
Very Good
Origin/Country
Taiwan
Machine Source
Fresh Imported from Canada
Quantity Available
1
Travel X
1900 mm
Travel Y
900 mm
Travel Z
800 mm
Rapid X
12000 m/min
Rapid Y
12000 m/min
Rapid Z
800 m/min
Number of Axes
3
Spindle Nose to Table
150 – 950 mm
Spindle Speed
6000 rpm
Spindle Taper
CAT50
Table Size
2200 × 900 mm

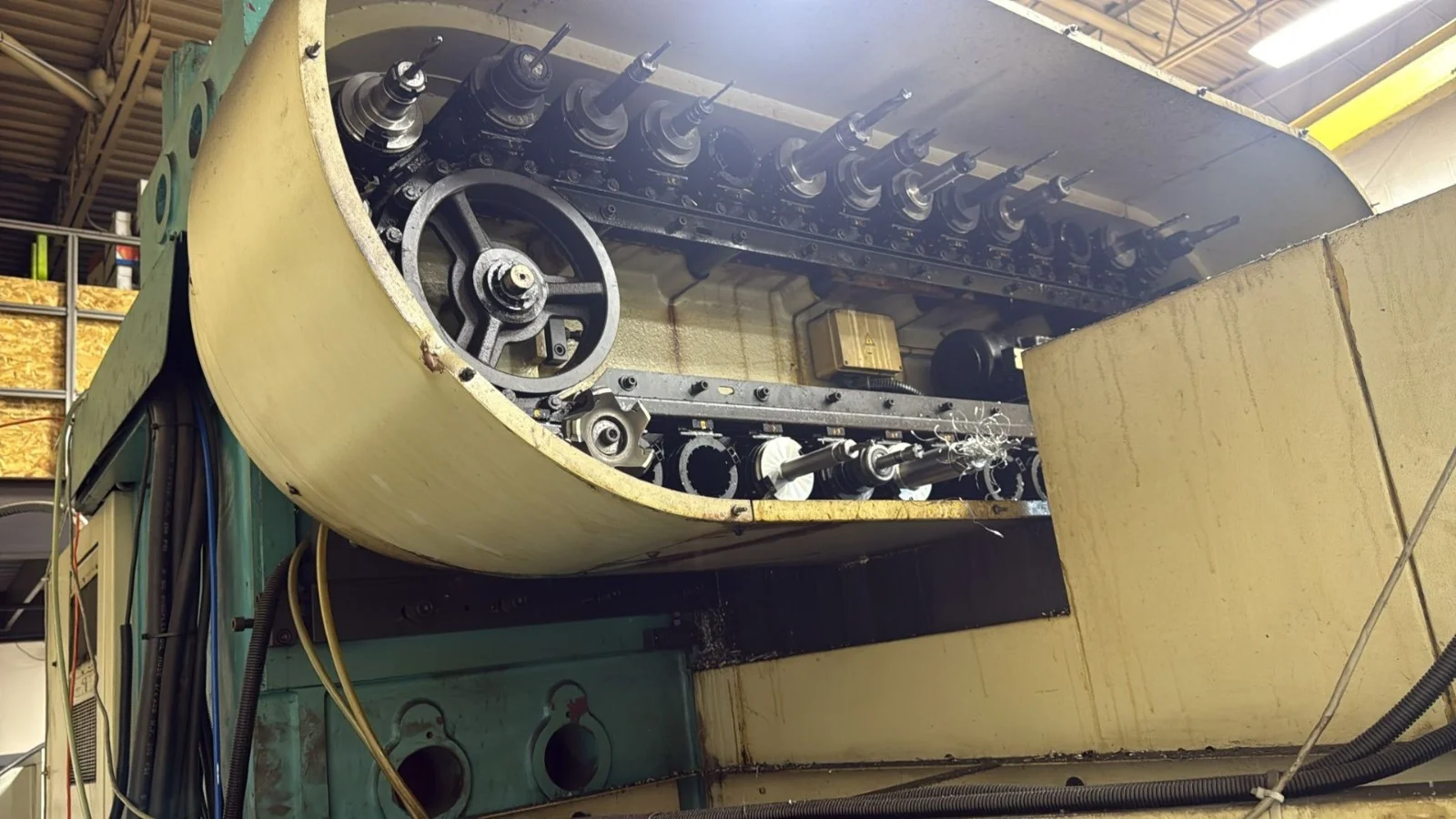

ATC Tool Capacity
32
No. of Pallets
Single

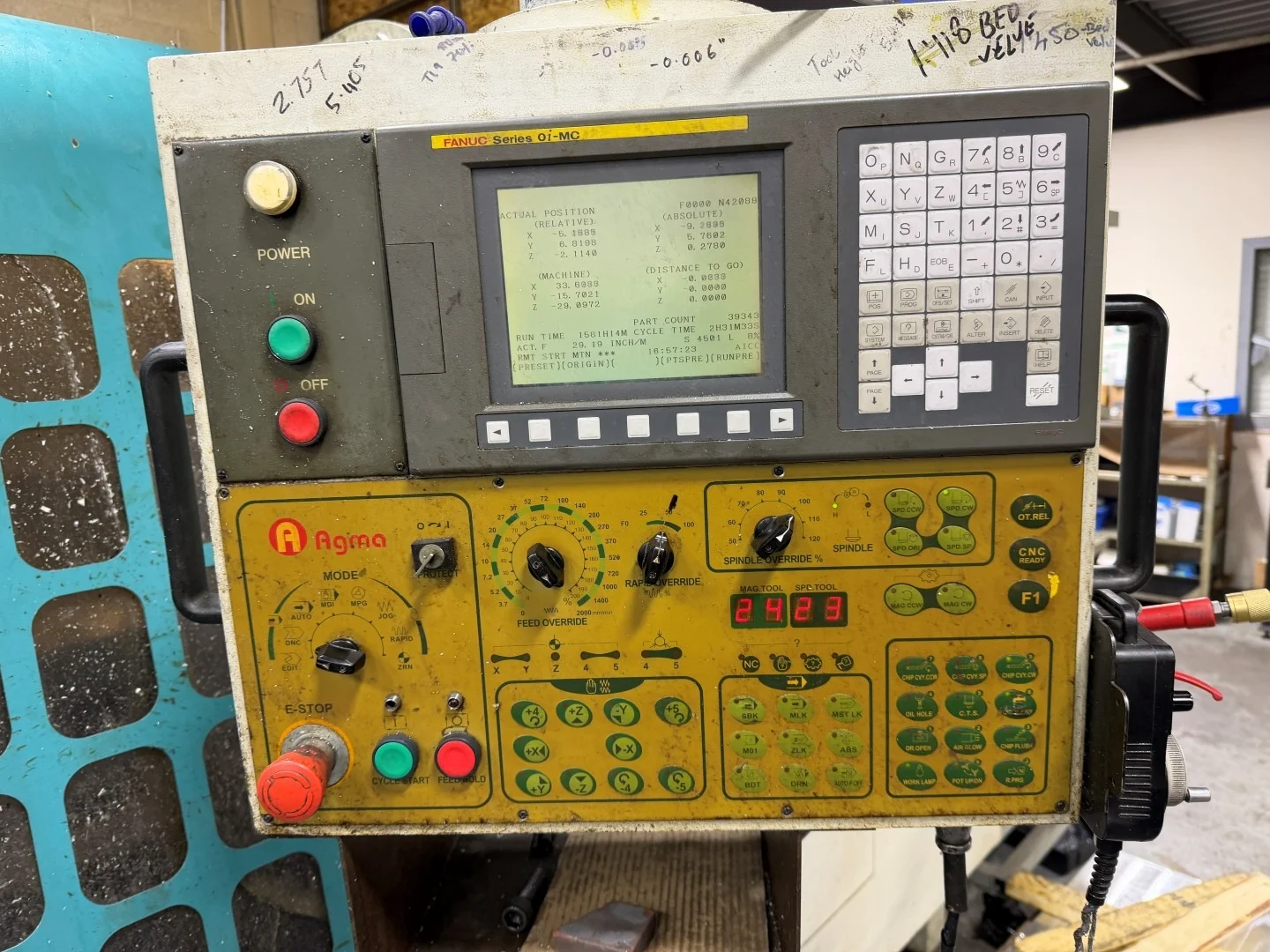

Controller Company
Fanuc
Controller Model
0i MC
Guideways Type
Box
Column Type
Single Column
Weight
18000 kg
Running Condition
Working
