Drill Tap Center

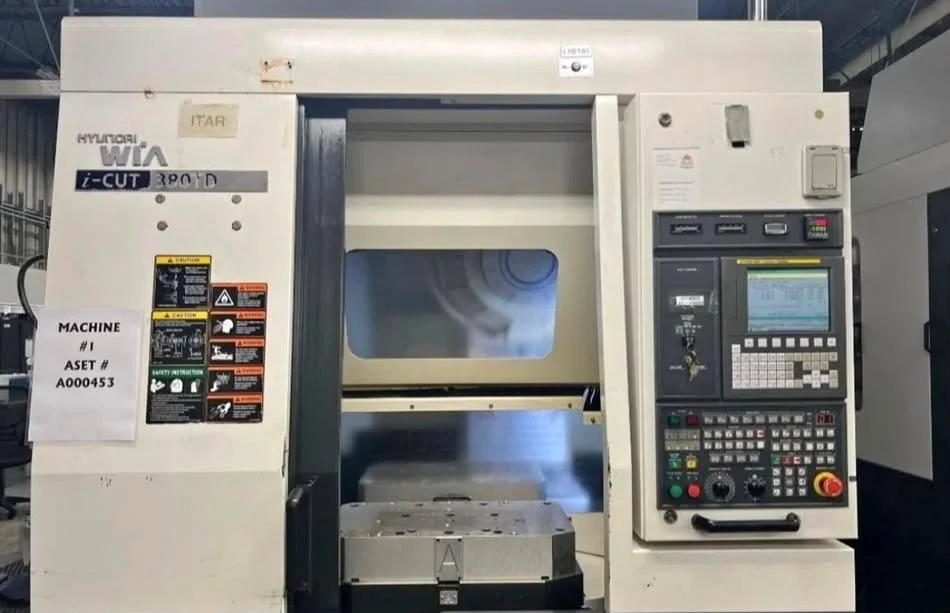

Hyundai i-CUT 380 TD

Name: Hyundai i-CUT 380 TD
Brand: Hyundai
Availability: InStock

Year: 2011

Rare Find

Controller

Fanuc 0i TD

X Travel

520

Y Travel

360

Z Travel

480

16

Years

Family-Run Legacy

2,000+

Machines

Successfully Traded

Pan-India

Network

Buyers & Sellers

Mohali

Punjab

Headquarters

WhatsApp Send Enquiry

WhatsApp Us

Download PDF

Typically responds within a few hours

Specifications

Machine Information

Machine State: Used
Condition: Excellent
Origin/Country: South Korea
Machine Source: Fresh Imported from USA
Quantity Available: 4

Axis Specifications

Travel X: 520 mm
Travel Y: 360 mm
Travel Z: 480 mm
Rapid X: 50 m/min
Rapid Y: 50 m/min
Rapid Z: 56 m/min
Number of Axes: 3

Spindle Specifications

Spindle Power: 10 kW
Spindle Nose to Table: 200 – 550 mm
Spindle Speed: 12000 rpm
Spindle Taper: BBT 30
Spindle Type: Integral

Table & Workholding

Table Size: 650 × 400 mm
ATC Tool Capacity: 14
No. of Pallets: Double
Pallet Type: Rotating
Max Table Load: 250 kg

Control & Electrical

Controller Company: Fanuc
Controller Model: 0i TD

Other Specifications

Guideways Type: LM
Weight: 5200 kg
Running Condition: Working

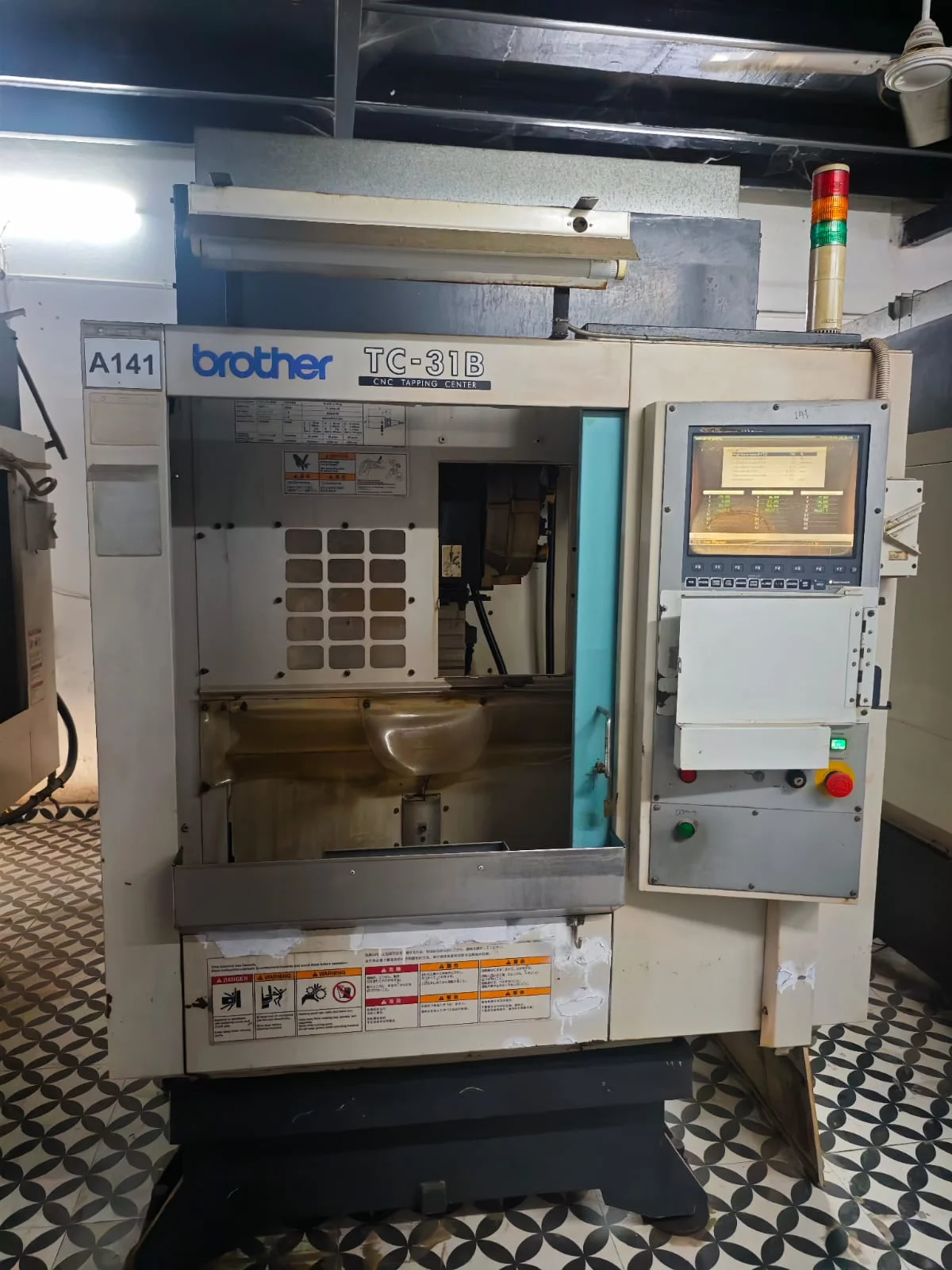

Other Drill Tap Center machines
