Year: 2001
Controller
Fanuc 18 M
X Travel
1020
Y Travel
520
16
Years
Family-Run Legacy
2,000+
Machines
Successfully Traded
Pan-India
Network
Buyers & Sellers
Mohali
Punjab
Headquarters
Z Travel
540

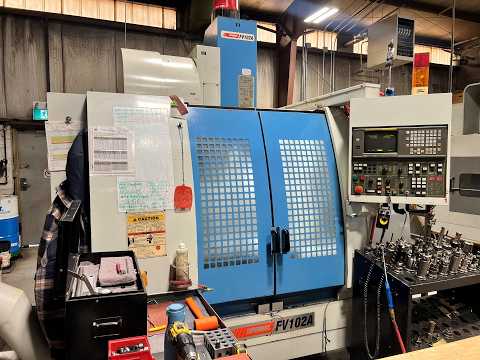

Ideal for production job shops, automotive component manufacturers, and precision engineering plants, this VMC excels at heavy-duty milling, high-speed drilling, and rigid tapping. Its major advantage is the expansive 1020 mm X-axis travel combined with a 36,000 mm/min rapid traverse rate and rigid 5,350 kg frame, ensuring fast cycle times and highly stable machining performance.
Machine State
Used
Condition
Excellent
Origin/Country
Taiwan
Machine Source
Fresh Imported
Quantity Available
1
Travel X
1020 mm
Travel Y
520 mm
Travel Z
540 mm
Rapid X
36 m/min
Rapid Y
36 m/min
Rapid Z
24 m/min
Number of Axes
3

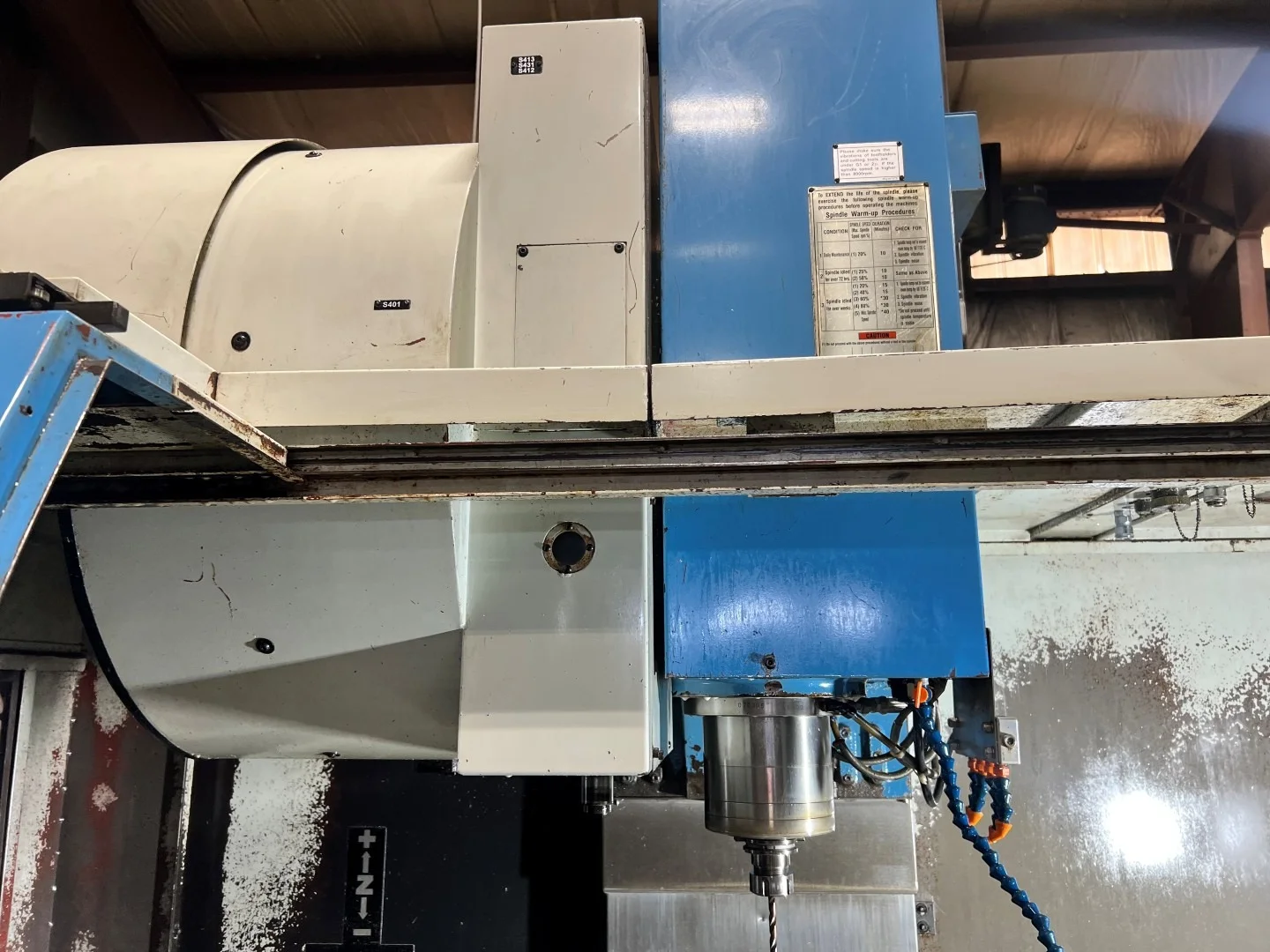

Spindle Power
7.5 kW
Spindle Nose to Table
120 – 660 mm
Spindle Speed
10000 rpm
Spindle Taper
BT40

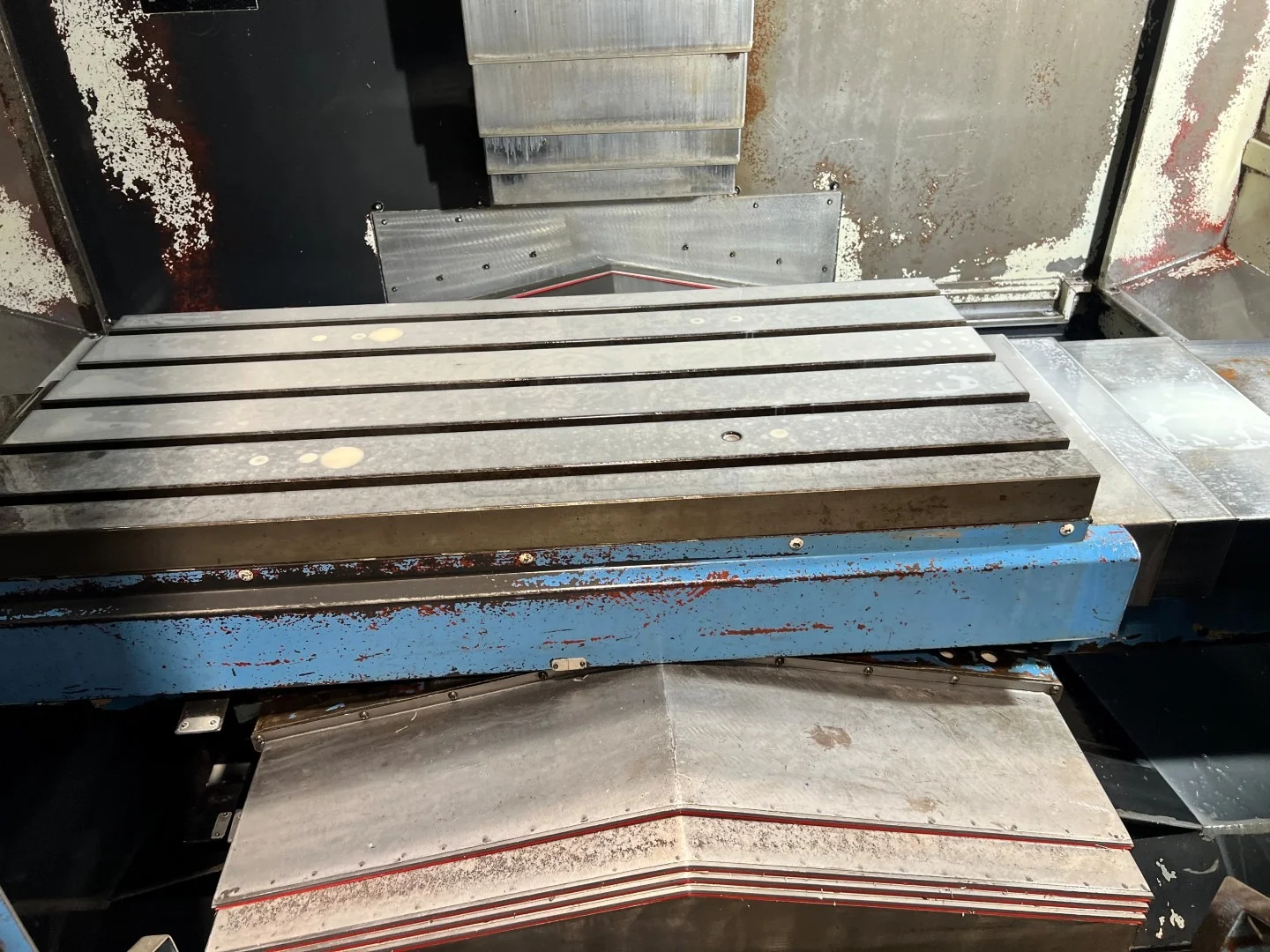

Table Size
1120 × 520 mm
ATC Tool Capacity
24
No. of Pallets
Single

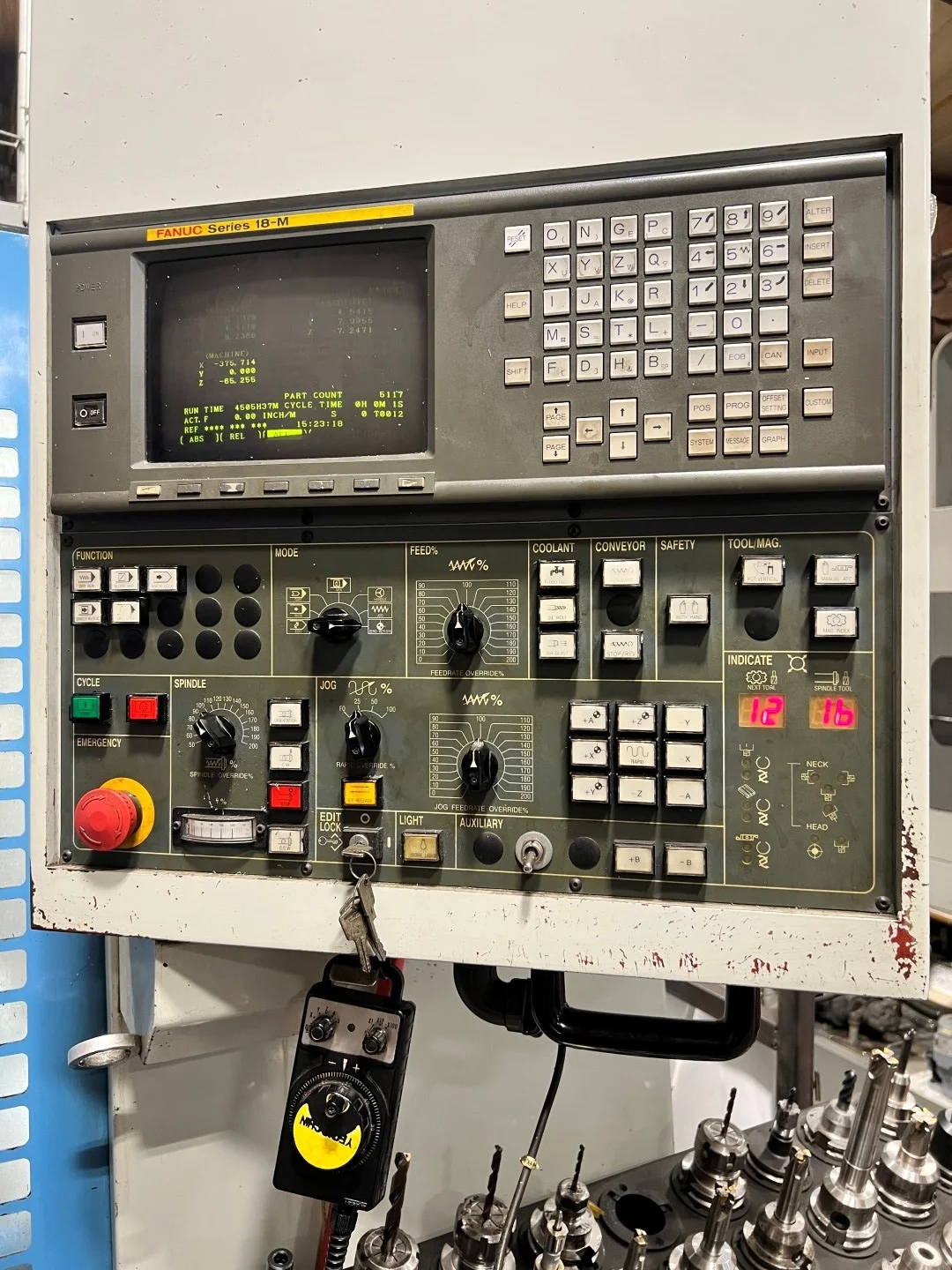

Controller Company
Fanuc
Controller Model
18 M
Column Type
Single Column
Weight
5350 kg
