Used
2003
VMC - Vertical Machining Center
Supermax
FV-102A
ControllerFanuc 18i MB
Travel (mm)
X1020
Y520
Z540
Year: 2004

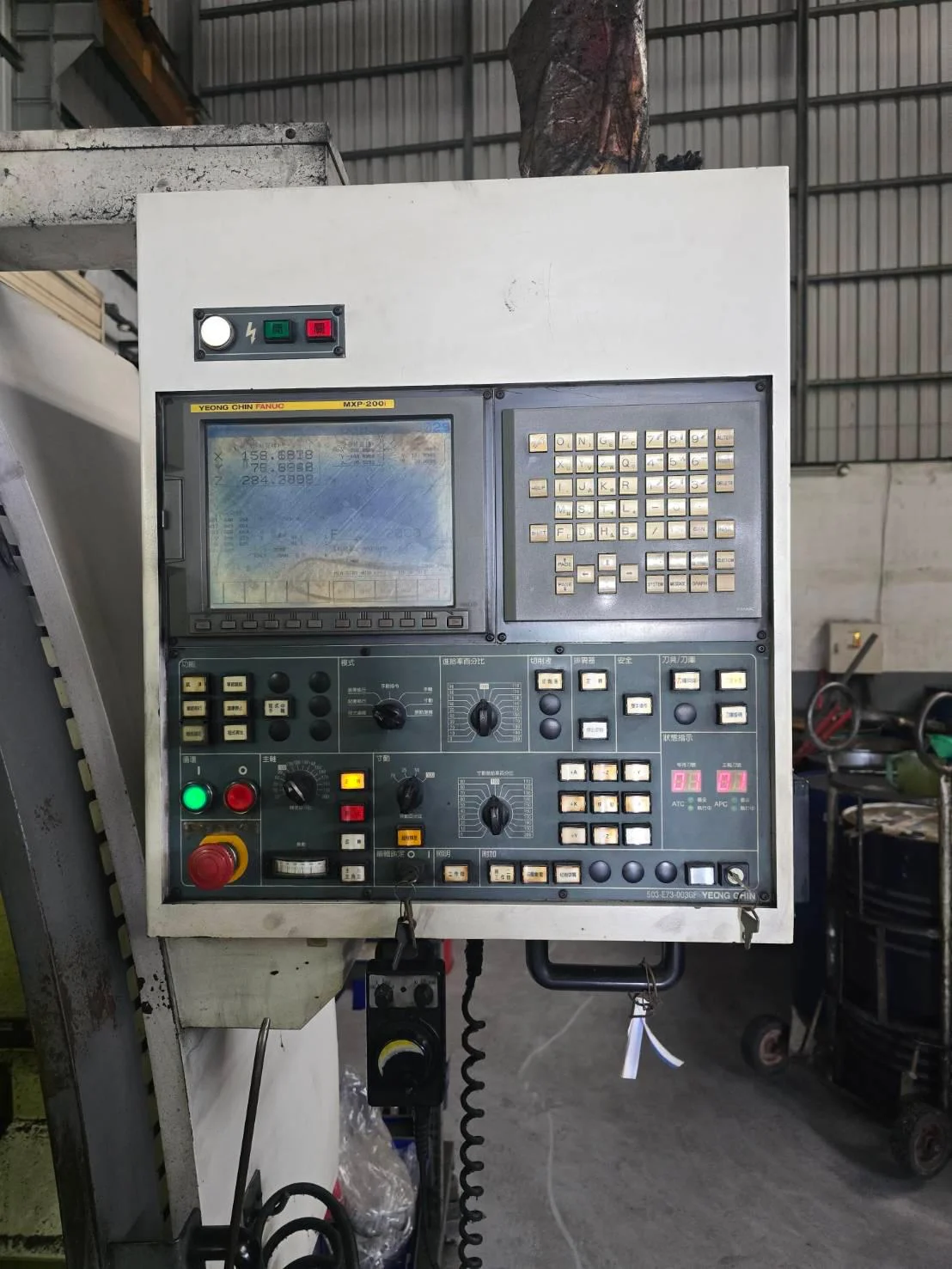

Controller
Fanuc MXP 200i
X
1020
Y
520
Z
540
16
Years
Family-Run Legacy
2,000+
Machines
Successfully Traded
Pan-India
Network
Buyers & Sellers
Mohali
Punjab
Headquarters
Typically responds within a few hours
| Machine Information | |
|---|---|
| Machine State | Used |
| Condition | Very Good |
| Origin/Country | Taiwan |
| Machine Source | Fresh Imported from Canada |
| Quantity Available | 1 |
| Axis Specifications | |
|---|---|
| Travel X | 1020 mm |
| Travel Y | 520 mm |
| Travel Z | 540 mm |
| Rapid X | 24 m/min |
| Rapid Y | 24 m/min |
| Rapid Z | 24 m/min |
| Number of Axes | 3 |
| Spindle Specifications | |
|---|---|
| Spindle Power | 15 kW |
| Spindle Speed | 10000 rpm |
| Spindle Taper | BT40 |
| Spindle Type | Integral |
| Table & Workholding | |
|---|---|
| Table Size | 1120 × 520 mm |
| ATC Tool Capacity | 24 |
| No. of Pallets | Single |
| Control & Electrical | |
|---|---|
| Controller Company | Fanuc |
| Controller Model | MXP 200i |
| Other Specifications | |
|---|---|
| Guideways Type | LM |
| Column Type | Single Column |
| Weight | 5600 kg |
| Running Condition | Working |
